NSN 5975-01-090-9662
Part Details | ELECTRICAL-ELECTRONIC EQUIPMENT CHASSIS
5975-01-090-9662 A box, frame, or plate fabricated of electrically conductive material designed to mount, but which does not include, electronic components and their associated circuitry. It may have facilities for attachment to a rack or cabinet or to accommodate specially designed components. It may include a shielding function, integral wiring, and mounting hardware as part of the item. Excludes MOUNTING BASE, ELECTRICAL EQUIPMENT.
Alternate Parts: 8109961, 81-0996-1, 8109961, 81-0996-1, 5975-01-090-9662, 01-090-9662, 5975010909662, 010909662
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 28, 1980 | 01-090-9662 | 38671 ( CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT ) |
REFERENCE DRAWINGS & PICTURES

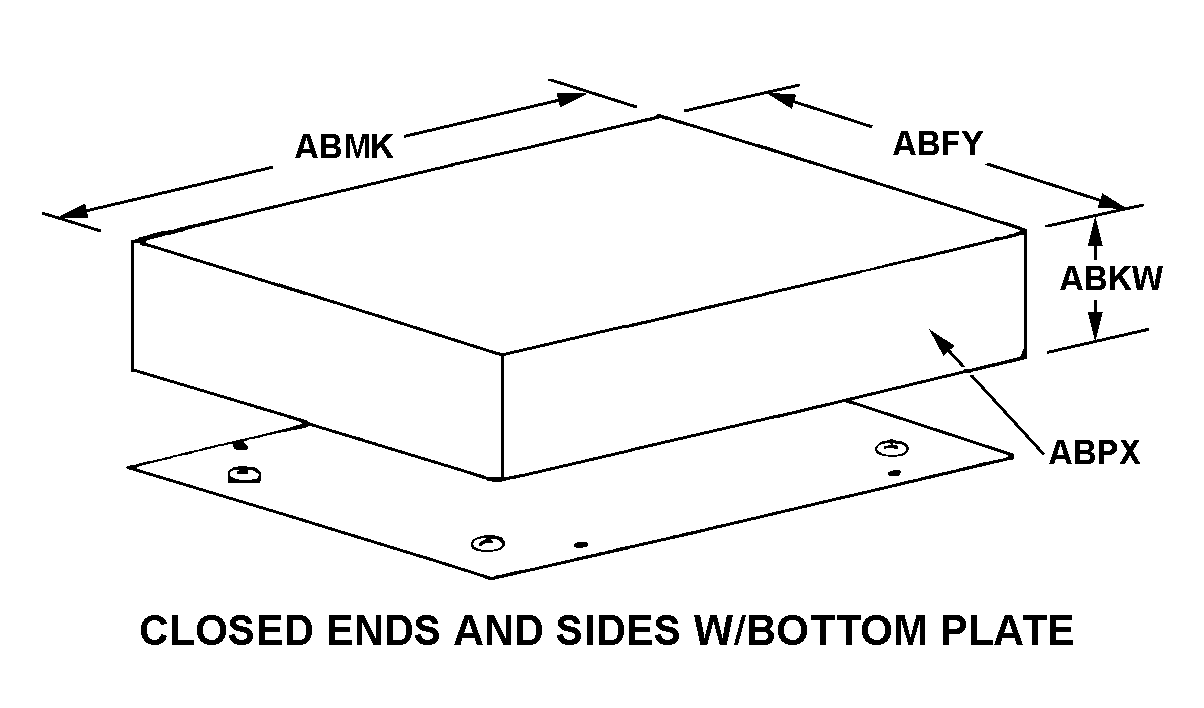

CLOSED ENDS AND SIDES W/BOTTOM PLATE
Cross Reference | NSN 5975-01-090-9662
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 81-0996-1 | 76381 | 3M COMPANYDBA 3M |
| 81-0996-1 | 72914 | GRIMES AEROSPACE COMPANYDBA HONEYWELL |
Technical Data | NSN 5975-01-090-9662
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLOSED ENDS AND SIDES W/BOTTOM PLATE |
| OVERALL DEPTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.250 INCHES NOMINAL |
| OVERALL WIDTH | 11.750 INCHES NOMINAL |
