NSN 5975-01-095-4074
Part Details | STUFFING TUBE
5975-01-095-4074 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: 3718471020, 371-8471-020, G1218A6M, G1218A-6M, 3718471020, 371-8471-020, 3718471020, 371-8471-020, 5975-01-095-4074, 01-095-4074, 5975010954074, 010954074
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 30, 1980 | 01-095-4074 | 00882 ( STUFFING TUBE ) |

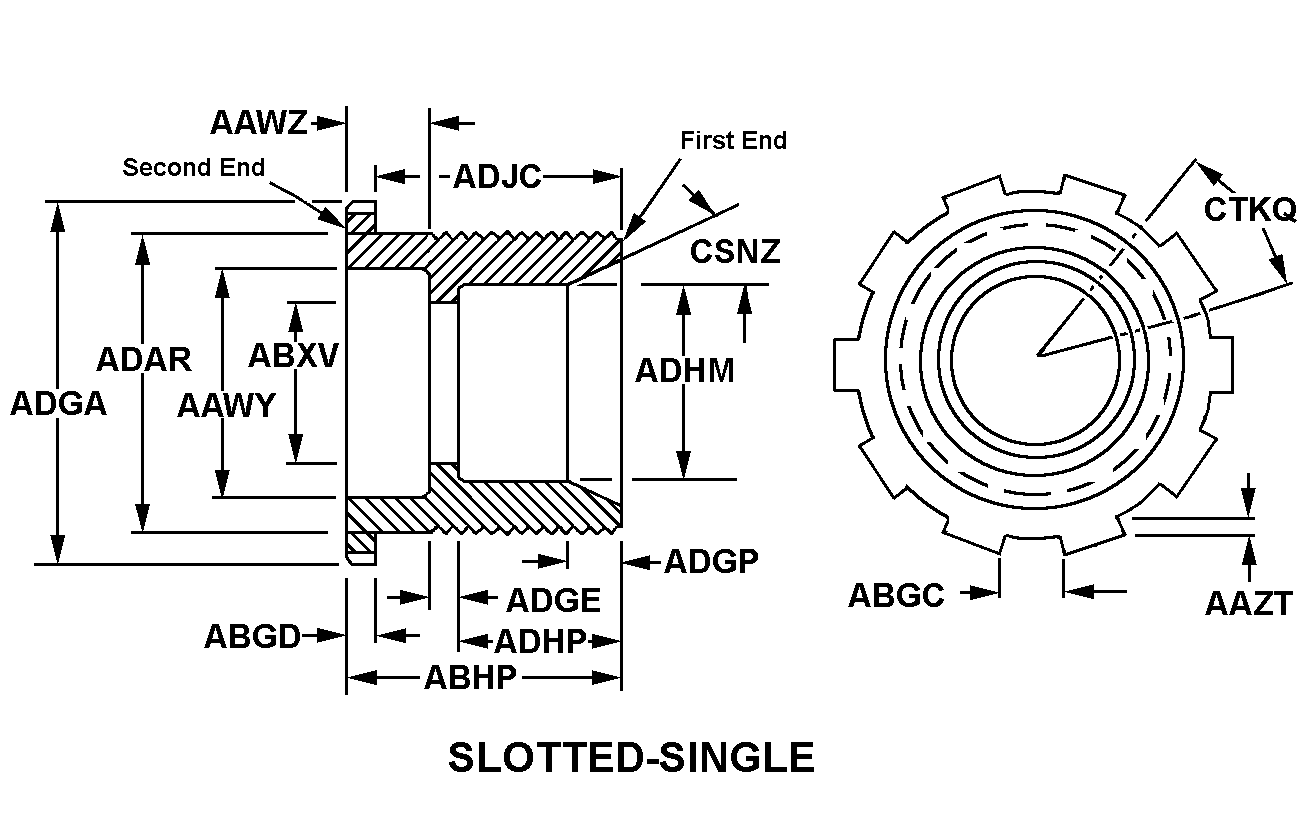

REFERENCE DRAWINGS & PICTURES
SLOTTED-SINGLE
Cross Reference | NSN 5975-01-095-4074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 371-8471-020 | 06324 | GLENAIR, INC. |
| G1218A-6M | 06324 | GLENAIR, INC. |
| 371-8471-020 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
| 371-8471-020 | 95105 | ROCKWELL COLLINS, INC.DIV GOVERNMENT SYSTEMS - DALLAS |
Technical Data | NSN 5975-01-095-4074
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SLOTTED-SINGLE |
| OVERALL LENGTH | 1.525 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.750 INCHES MINIMUM AND 0.780 INCHES MAXIMUM |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 0.281 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| ITEM ACCOMMODATED MAXIMUM THICKNESS | 0.125 INCHES |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | FLANGE AND LOCK NUTS |
