NSN 5985-00-056-9625
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-056-9625 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 1460303, 1460-303, 1460303, 1460-303, 5985-00-056-9625, 00-056-9625, 5985000569625, 000569625
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-056-9625 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

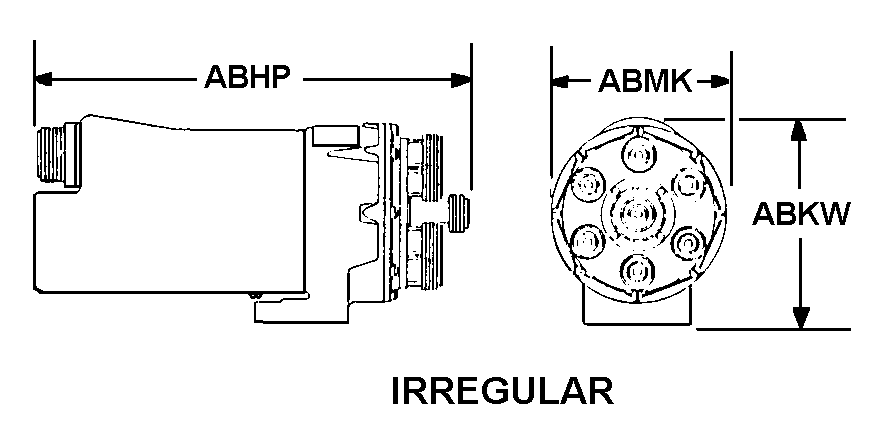

REFERENCE DRAWINGS & PICTURES
IRREGULAR
Cross Reference | NSN 5985-00-056-9625
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1460-303 | 50140 | K&L MICROWAVE, INC. |
| 1460-303 | 82152 | L3 TECHNOLOGIES, INC.DBA DATRON ADVANCED TECHNOLOGIES |
Technical Data | NSN 5985-00-056-9625
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | MOTOR |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 3.0 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 24.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 3 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 1 PLUG, COAXIAL AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| BODY STYLE | IRREGULAR |
| OVERALL LENGTH | 7.312 INCHES NOMINAL |
| OVERALL HEIGHT | 3.547 INCHES NOMINAL |
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| OPERATING TEMP RANGE | -59.0 TO +85.0 DEG CELSIUS |
