NSN 5985-00-080-4692

Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH

5985-00-080-4692 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).

Alternate Parts: 10880001252, 108-8000-1252, 20735150701, 2073515-0701, 5985-00-080-4692, 00-080-4692, 5985000804692, 000804692

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59DEC 06, 196700-080-469205298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE )

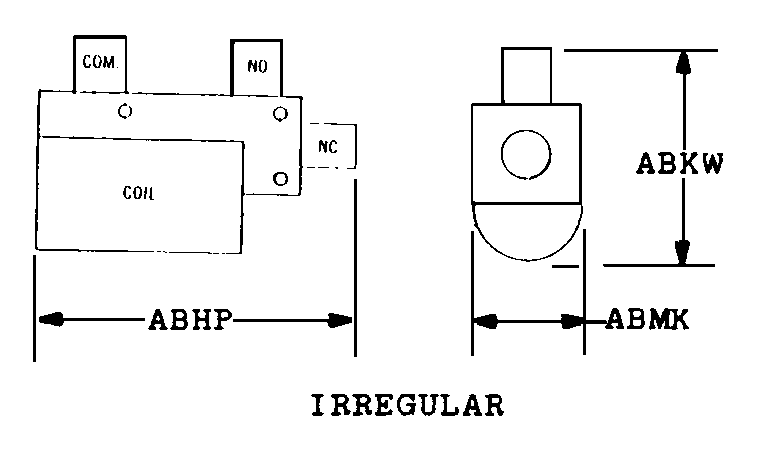

REFERENCE DRAWINGS & PICTURES

IRREGULAR

Cross Reference | NSN 5985-00-080-4692
Part Number Cage Code Manufacturer
108-8000-125294375AUTOMATIC CONNECTOR
2073515-070106845RAYTHEON COMPANYDBA RAYTHEON
Technical Data | NSN 5985-00-080-4692
Characteristic Specifications
ACTUATOR OPERATING METHOD RELAY
ACTUATOR CURRENT TYPE AND RATING IN AMPS0.5 DC NOMINAL
ACTUATOR VOLTAGE IN VOLTS12.0 NOMINAL
SWITCH TYPE NONTRANSFER
POLE QUANTITY1
THROW QUANTITY2
COUPLING POSITION QUANTITY3
TERMINAL TYPE AND QUANTITY2 WIRE HOOK AND 3 RECEPTACLE, COAXIAL
COAXIAL CONNECTOR SERIES DESIGNATION TNC
CONNECTOR END DESIGN FEMALE
SWITCH OPERATION SEQUENCE BREAKS BEFORE MAKES
SWITCHING TIME15.0 MILLISECONDS
SWITCH RETURN MECHANISM TYPE FAIL-SAFE
BODY STYLE IRREGULAR
OVERALL LENGTH2.250 INCHES NOMINAL
OVERALL HEIGHT0.880 INCHES NOMINAL
OVERALL WIDTH2.040 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY2 UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER0.140 INCHES NOMINAL
OPERATING TEMP RANGE-55.0 TO +105.0 DEG CELSIUS
PRECIOUS MATERIAL RHODIUM AND SILVER
PRECIOUS MATERIAL AND LOCATIONCONNECTORS RHODIUM AND EXTERNAL SURFACES SILVER
