NSN 5985-00-080-8648

Part Details | WAVEGUIDE COUPLING

5985-00-080-8648 A device specifically designed to conveniently couple and lock together mating surfaces of two adjacent sections of a waveguide.

Alternate Parts: 1156461, 115646-1, 5985-00-080-8648, 00-080-8648, 5985000808648, 000808648

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59DEC 08, 196700-080-864802439 ( COUPLING, WAVEGUIDE )

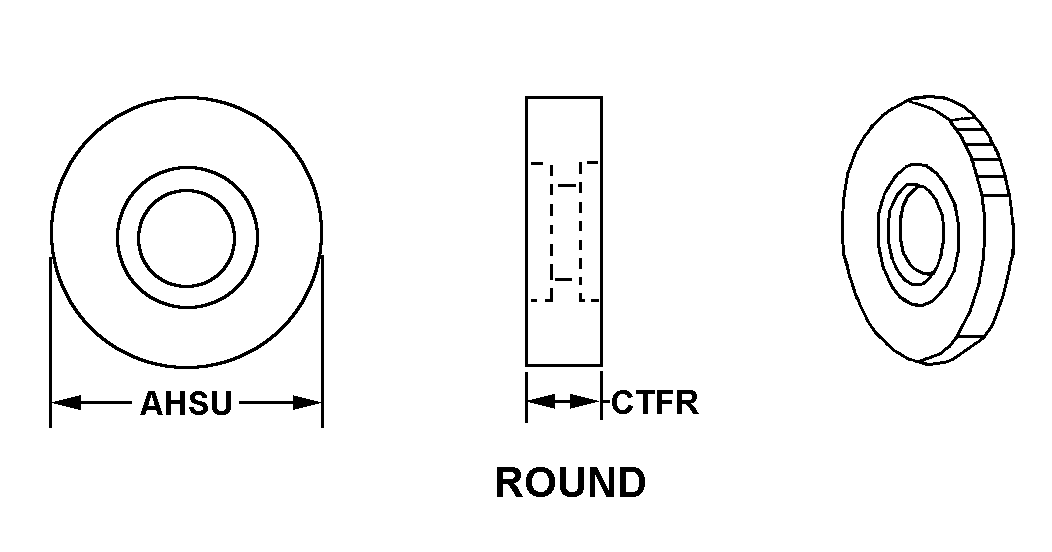

REFERENCE DRAWINGS & PICTURES

ROUND

Cross Reference | NSN 5985-00-080-8648
Part Number Cage Code Manufacturer
115646-137695RAYTHEON COMPANYDBA RAYTHEON
Technical Data | NSN 5985-00-080-8648
Characteristic Specifications
STYLE DESIGNATOR ROUND
COUPLING OUTSIDE DIAMETER1.250 INCHES NOMINAL
COUPLING OVERALL DEPTH0.641 INCHES NOMINAL
END ITEM IDENTIFICATIONAIRCRAFT MODEL F-8
