NSN 5985-00-093-6653
Part Details | ANTENNA SUPPORT BASE
5985-00-093-6653
Alternate Parts: 140772, 5985-00-093-6653, 00-093-6653, 5985000936653, 000936653
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-093-6653 | 02843 ( BASE, ANTENNA SUPPORT ) |

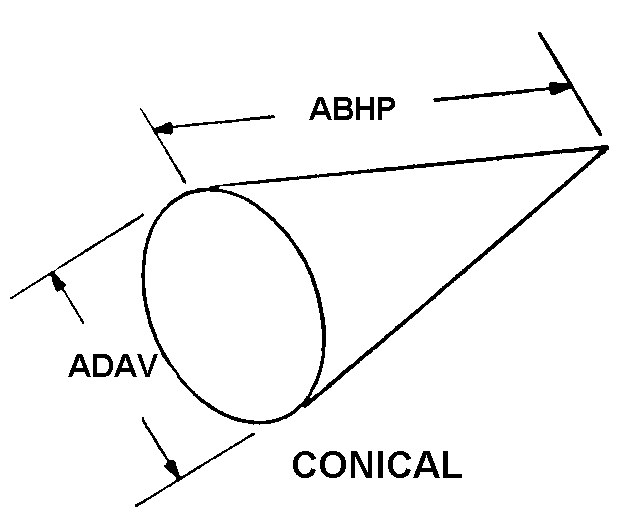

REFERENCE DRAWINGS & PICTURES
CONICAL
Cross Reference | NSN 5985-00-093-6653
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 140772 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5985-00-093-6653
| Characteristic | Specifications |
|---|---|
| MOUNTING METHOD | THREADED HOLES |
| MOUNTING FACILITY QUANTITY | 4 |
| MOUNTING HOLE TYPE | PLAIN |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 5-40 UNC |
| THREAD CLASS | 2B |
| MOUNTING FACILITY CIRCLE RADIUS | 2.250 INCHES NOMINAL |
| BASIC SHAPE STYLE | CONICAL |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| OVERALL DIAMETER | 3.250 INCHES NOMINAL |
