NSN 5985-00-093-6654
Part Details | ANTENNA SUPPORT BASE
5985-00-093-6654
Alternate Parts: 140782, 5985-00-093-6654, 00-093-6654, 5985000936654, 000936654
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-093-6654 | 02843 ( BASE, ANTENNA SUPPORT ) |
REFERENCE DRAWINGS & PICTURES

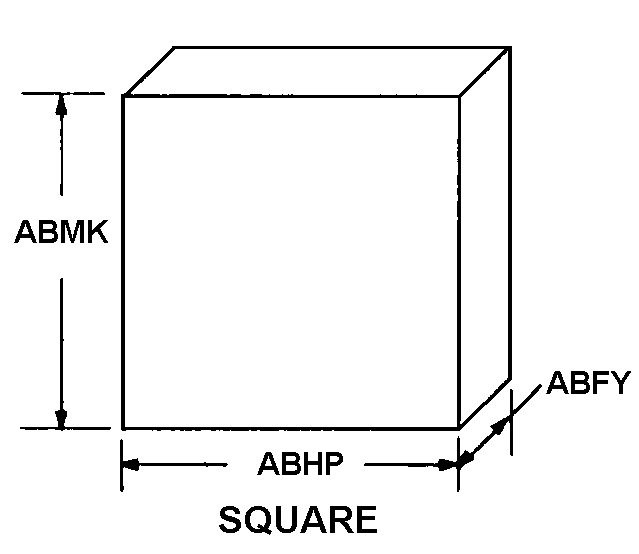

SQUARE
Cross Reference | NSN 5985-00-093-6654
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 140782 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5985-00-093-6654
| Characteristic | Specifications |
|---|---|
| MOUNTING METHOD | THREADED HOLES |
| MOUNTING FACILITY QUANTITY | 16 |
| MOUNTING HOLE TYPE | PLAIN |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 3-48 UNC |
| THREAD CLASS | 2B |
| BASIC SHAPE STYLE | SQUARE |
| OVERALL DEPTH | 1.375 INCHES NOMINAL |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| OVERALL WIDTH | 3.750 INCHES NOMINAL |
