NSN 5985-00-095-6545
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-095-6545 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 174A$1042, 174A$104-2, 134C00100, 134C00100, 130805220, 13-08-05220, 174AS1042, 174AS104-2, S2117, S-2117, 174AS1042, 174AS104-2, 5985-00-095-6545, 00-095-6545, 5985000956545, 000956545
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 08, 1972 | 00-095-6545 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

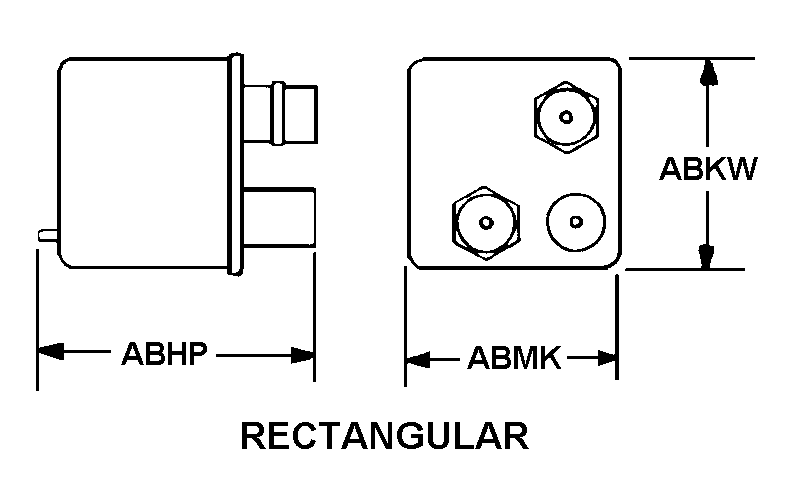

RECTANGULAR
Cross Reference | NSN 5985-00-095-6545
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 174A$104-2 | 02289 | HI-G CO INCSUB OF NYTRONICS INC |
| 134C00100 | 50140 | K&L MICROWAVE, INC. |
| 134C00100 | 82152 | L3 TECHNOLOGIES, INC.DBA DATRON ADVANCED TECHNOLOGIES |
| 13-08-05220 | 25693 | MEGGITT SAFETY SYSTEMS, INC. |
| 174AS104-2 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| S-2117 | 12598 | R L C ELECTRONICS, INC. |
| 174AS104-2 | 24022 | TELEDYNE WIRELESS, LLCDBA TELEDYNE MICROWAVE SOLUTIONS |
Technical Data | NSN 5985-00-095-6545
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.26 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 4 |
| COUPLING POSITION QUANTITY | 5 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE AND 4 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCHING TIME | 20.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL HEIGHT | 2.500 INCHES NOMINAL |
| OVERALL WIDTH | 2.875 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED STUD |
| OPERATING TEMP RANGE | -54.0 TO +85.0 DEG CELSIUS |
| MAXIMUM OPERATING ALTITUDE RATING | 15000.0 FEET |
