NSN 5985-00-097-3948
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-097-3948 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 130805240, 13-08-05240, 174AS1044, 174AS104-4, 130805240, 13-08-05240, 130805240, 13-08-05240, 174AS1044, 174AS104-4, 174AS1044, 174AS104-4, 174AS1044, 174AS104-4, 174AS1044, 174AS104-4, 5985-00-097-3948, 00-097-3948, 5985000973948, 000973948
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 13, 1972 | 00-097-3948 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

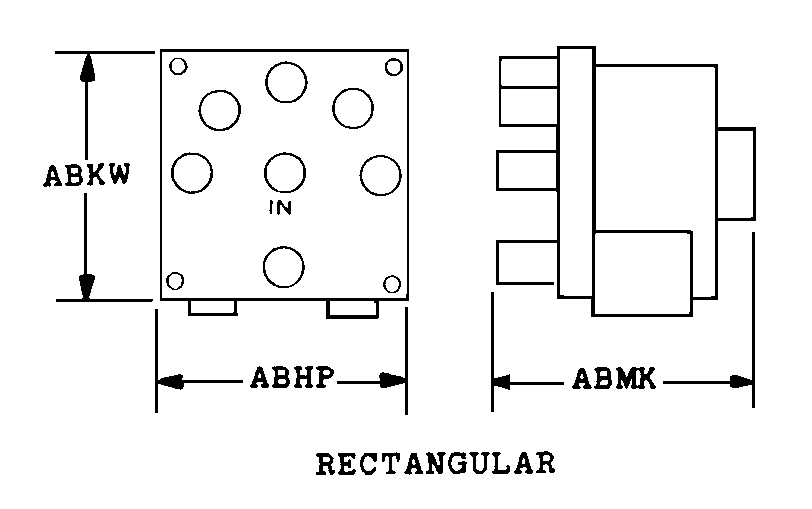

RECTANGULAR
Cross Reference | NSN 5985-00-097-3948
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13-08-05240 | 00471 | DOW-KEY MICROWAVE CORPORATION |
| 174AS104-4 | 02289 | HI-G CO INCSUB OF NYTRONICS INC |
| 13-08-05240 | 50140 | K&L MICROWAVE, INC. |
| 13-08-05240 | 82152 | L3 TECHNOLOGIES, INC.DBA DATRON ADVANCED TECHNOLOGIES |
| 174AS104-4 | 25693 | MEGGITT SAFETY SYSTEMS, INC. |
| 174AS104-4 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| 174AS104-4 | 12598 | R L C ELECTRONICS, INC. |
| 174AS104-4 | 24022 | TELEDYNE WIRELESS, LLCDBA TELEDYNE MICROWAVE SOLUTIONS |
Technical Data | NSN 5985-00-097-3948
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.26 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 8 |
| COUPLING POSITION QUANTITY | 9 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE AND 9 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 3.190 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.250 INCHES MAXIMUM |
| OVERALL WIDTH | 3.560 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| OPERATING TEMP RANGE | -0.0 TO +55.0 DEG CELSIUS |
| MAXIMUM OPERATING ALTITUDE RATING | 15000.0 FEET |
