NSN 5985-00-097-7401
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-097-7401 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 316100822, 316-10082-2, 3160100822, 316-010082-2, 316100822, 316-10082-2, 3160100822, 316-010082-2, 5985-00-097-7401, 00-097-7401, 5985000977401, 000977401
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 22, 1968 | 00-097-7401 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

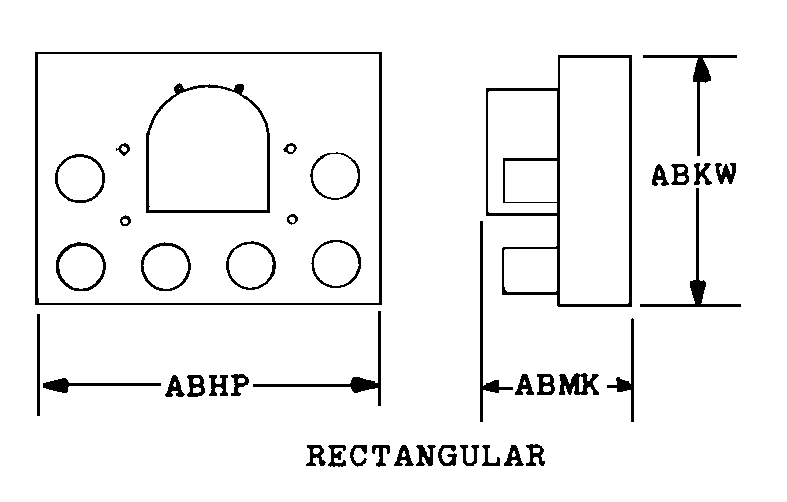

RECTANGULAR
Cross Reference | NSN 5985-00-097-7401
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 316-10082-2 | 74868 | AMPHENOL CORPORATIONDIV AMPHENOL RF |
| 316-010082-2 | 74868 | AMPHENOL CORPORATIONDIV AMPHENOL RF |
| 316-10082-2 | 62165 | ARROWSMITH SHELBURNE INC |
| 316-010082-2 | 62165 | ARROWSMITH SHELBURNE INC |
Technical Data | NSN 5985-00-097-7401
| Characteristic | Specifications |
|---|---|
| ACTUATOR VOLTAGE IN VOLTS | 12.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, RECEPTACLE AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCHING TIME | 8.0 MILLISECONDS |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.719 INCHES NOMINAL |
| OPERATING TEMP RANGE | -55.0 TO +85.0 DEG CELSIUS |
