NSN 5985-00-105-7545
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-105-7545 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 810001754, 810001-754, DK109, 5985-00-105-7545, 00-105-7545, 5985001057545, 001057545
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 12, 1968 | 00-105-7545 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

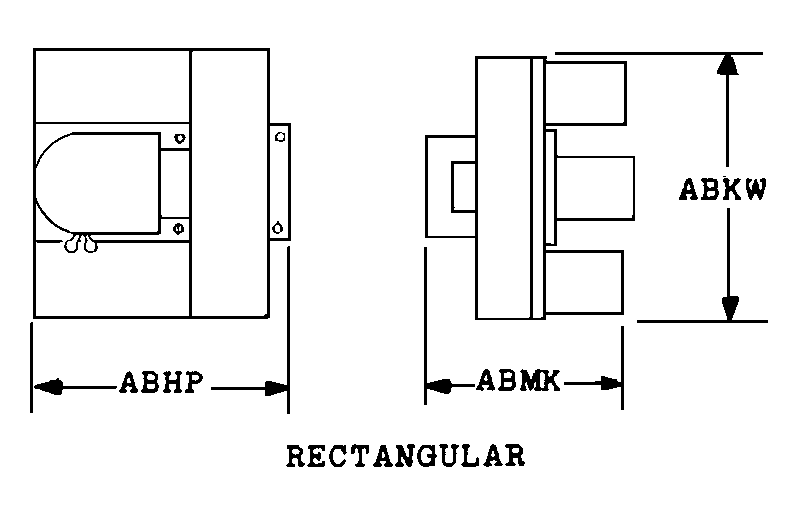

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 5985-00-105-7545
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 810001-754 | 12436 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| DK109 | 00471 | DOW-KEY MICROWAVE CORPORATION |
Technical Data | NSN 5985-00-105-7545
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 2 |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 4.080 INCHES NOMINAL |
| OVERALL HEIGHT | 1.156 INCHES NOMINAL |
| OVERALL WIDTH | 2.850 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.136 INCHES NOMINAL |
| OPERATING TEMP RANGE | +0.0 TO +70.0 DEG CELSIUS |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | CONNECTOR BODY SILVER |
