NSN 5985-00-105-8574
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-105-8574 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 2372142G1, SW86023, 5985-00-105-8574, 00-105-8574, 5985001058574, 001058574
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 15, 1968 | 00-105-8574 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

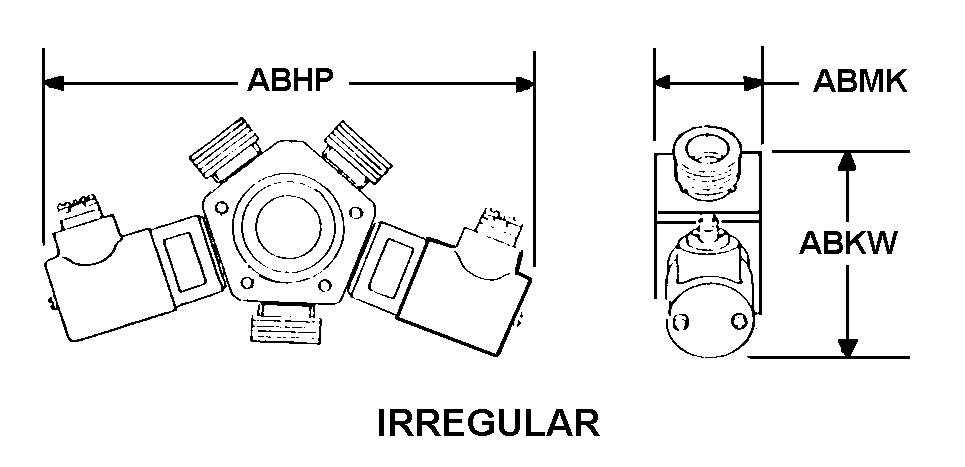

REFERENCE DRAWINGS & PICTURES
IRREGULAR
Cross Reference | NSN 5985-00-105-8574
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2372142G1 | 28527 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED |
| SW86023 | 0NKU0 | LCT ELECTRONICS |
Technical Data | NSN 5985-00-105-8574
| Characteristic | Specifications |
|---|---|
| ACTUATOR VOLTAGE IN VOLTS | 120.0 NOMINAL |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 2 |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| BODY STYLE | IRREGULAR |
| OVERALL LENGTH | 12.297 INCHES NOMINAL |
| OVERALL HEIGHT | 7.343 INCHES NOMINAL |
| OVERALL WIDTH | 6.000 INCHES NOMINAL |
| SPECIAL FEATURES | MTG SLOTS 0.281 IN. W BY 0.438 IN. LG SPACED 5.300 IN. C TO C BY 4.000 IN. C TO C |
