NSN 5985-00-110-7514
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-110-7514 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 11870, 11870, 11870, 5985-00-110-7514, 00-110-7514, 5985001107514, 001107514
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 16, 1968 | 00-110-7514 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

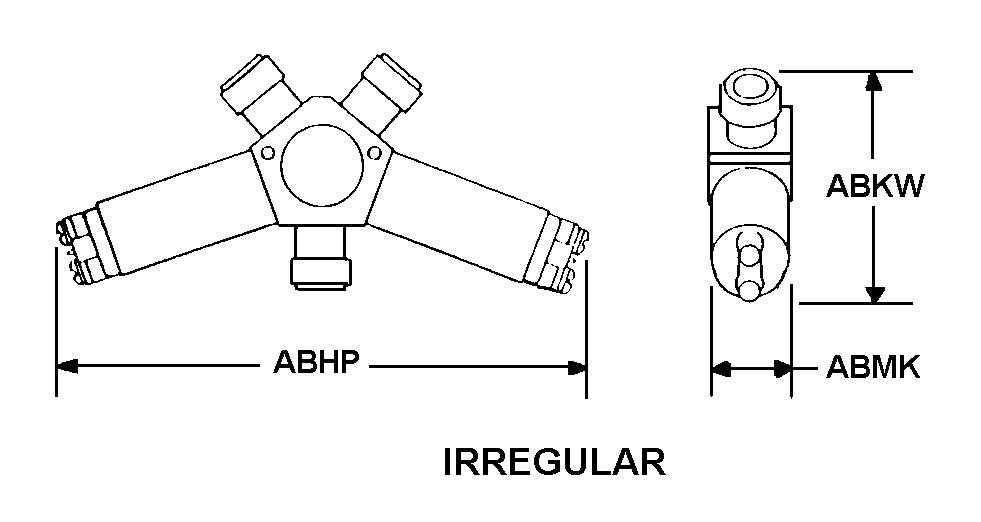

REFERENCE DRAWINGS & PICTURES
IRREGULAR
Cross Reference | NSN 5985-00-110-7514
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11870 | 00471 | DOW-KEY MICROWAVE CORPORATION |
| 11870 | 50140 | K&L MICROWAVE, INC. |
| 11870 | 82152 | L3 TECHNOLOGIES, INC.DBA DATRON ADVANCED TECHNOLOGIES |
Technical Data | NSN 5985-00-110-7514
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR VOLTAGE IN VOLTS | 115.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 4 SCREW AND 3 RECEPTACLE, COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCHING TIME | 10.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| BODY STYLE | IRREGULAR |
| OVERALL LENGTH | 5.540 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.460 INCHES MAXIMUM |
| OVERALL WIDTH | 0.865 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| OPERATING TEMP RANGE | -65.0 TO +185.0 DEG FAHRENHEIT |
