NSN 5985-00-116-6597
Part Details | VARIABLE ATTENUATOR
5985-00-116-6597 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: 6254051, 625405-1, 2280763, 228076-3, 8156S, MA51, 5985-00-116-6597, 00-116-6597, 5985001166597, 001166597
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 16, 1973 | 00-116-6597 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES

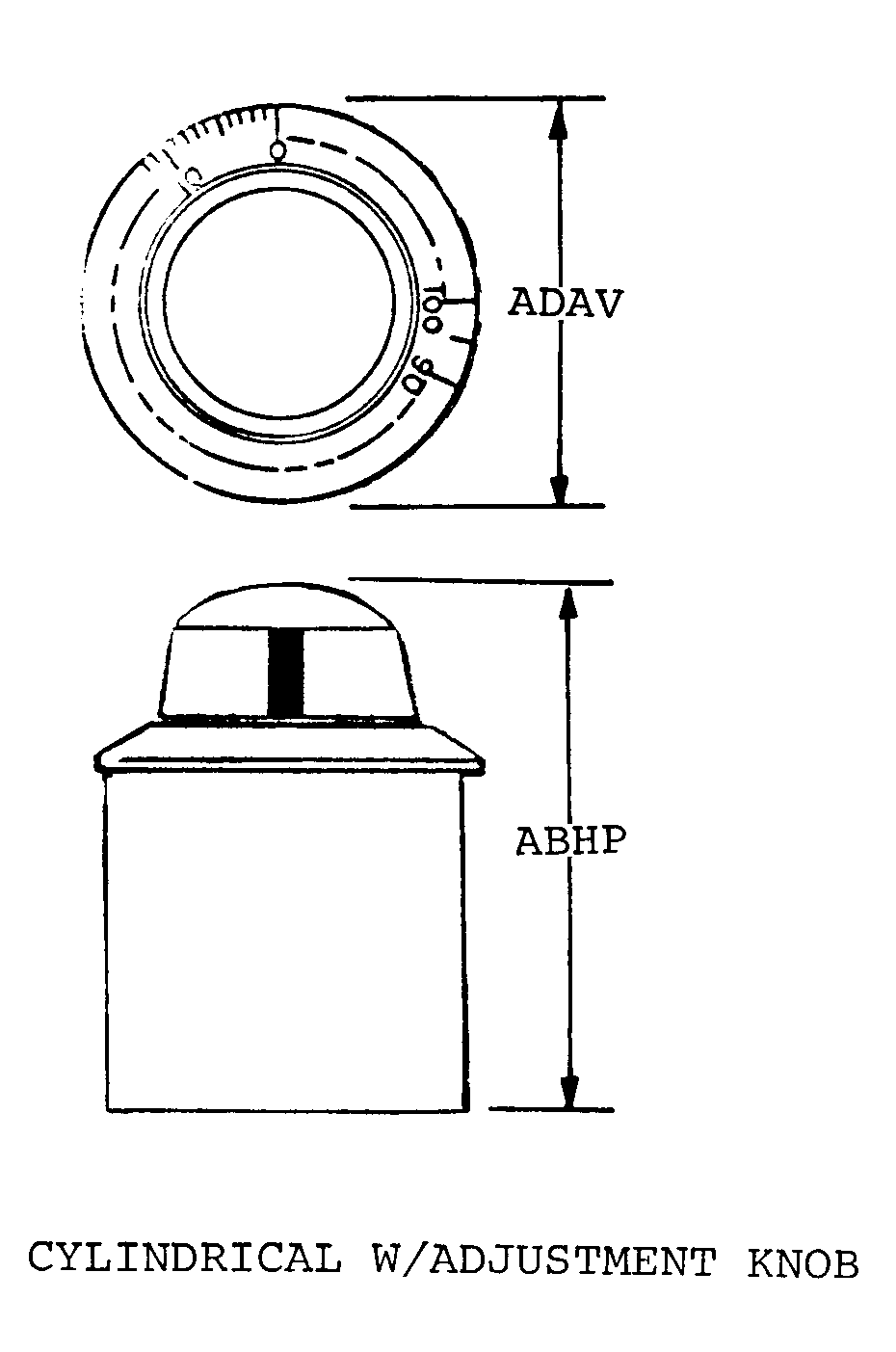

CYLINDRICAL W/ADJUSTMENT KNOB
Cross Reference | NSN 5985-00-116-6597
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 625405-1 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
| 228076-3 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
| 8156S | 04423 | TELONIC BERKELEY, INC. |
| MA51 | 23042 | TRILITHIC, INC. |
Technical Data | NSN 5985-00-116-6597
| Characteristic | Specifications |
|---|---|
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 6 |
| ATTENUATION PER STEP IN DECIBELS | 10.0 |
| BODY STYLE | CYLINDRICAL W/ADJUSTMENT KNOB |
| OVERALL LENGTH | 3.125 INCHES NOMINAL |
| OVERALL DIAMETER | 1.313 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 KNOB W/DIAL |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, MALE |
| SPECIAL FEATURES | 45.0 DEG BETWEEN STOPS |
| END ITEM IDENTIFICATION | TEST SET,RADAR RECEIVER AN/ALM-140 |
