NSN 5985-00-118-2869
Part Details | FIXED ATTENUATOR
5985-00-118-2869 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: 8710M, E2297601, E229760-1, 5985-00-118-2869, 00-118-2869, 5985001182869, 001182869
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 09, 1968 | 00-118-2869 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES
ROUND, TERMINAL/TERMINALS IN OPPOSITE SURFACE

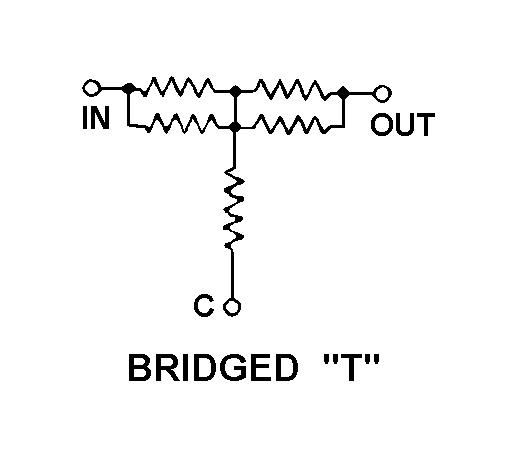

BRIDGED "T"
Cross Reference | NSN 5985-00-118-2869
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8710M | 70998 | BIRD ELECTRONIC CORPORATIONDIV BIRD ELECTRONIC CORP |
| E229760-1 | 11982 | NORTHROP GRUMMAN SPACE & MISSIONSYSTEMS CORP. |
Technical Data | NSN 5985-00-118-2869
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |
| SCHEMATIC DIAGRAM DESIGNATOR | BRIDGED "T" |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| RF SIGNAL ATTENUATION IN DECIBELS | 20.0 |
| BODY STYLE | ROUND, TERMINAL/TERMINALS IN OPPOSITE SURFACE |
| OVERALL LENGTH | 6.440 INCHES NOMINAL |
| OVERALL DIAMETER | 1.250 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| BODY SURFACE TREATMENT | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 3 CONNECTOR |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
