NSN 5985-00-124-5246
Part Details | VARIABLE ATTENUATOR
5985-00-124-5246 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: 1130000051, 155A44, 155-A44, SMA753233, SM-A-753233, 50795, 5985-00-124-5246, 00-124-5246, 5985001245246, 001245246
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 28, 1974 | 00-124-5246 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES

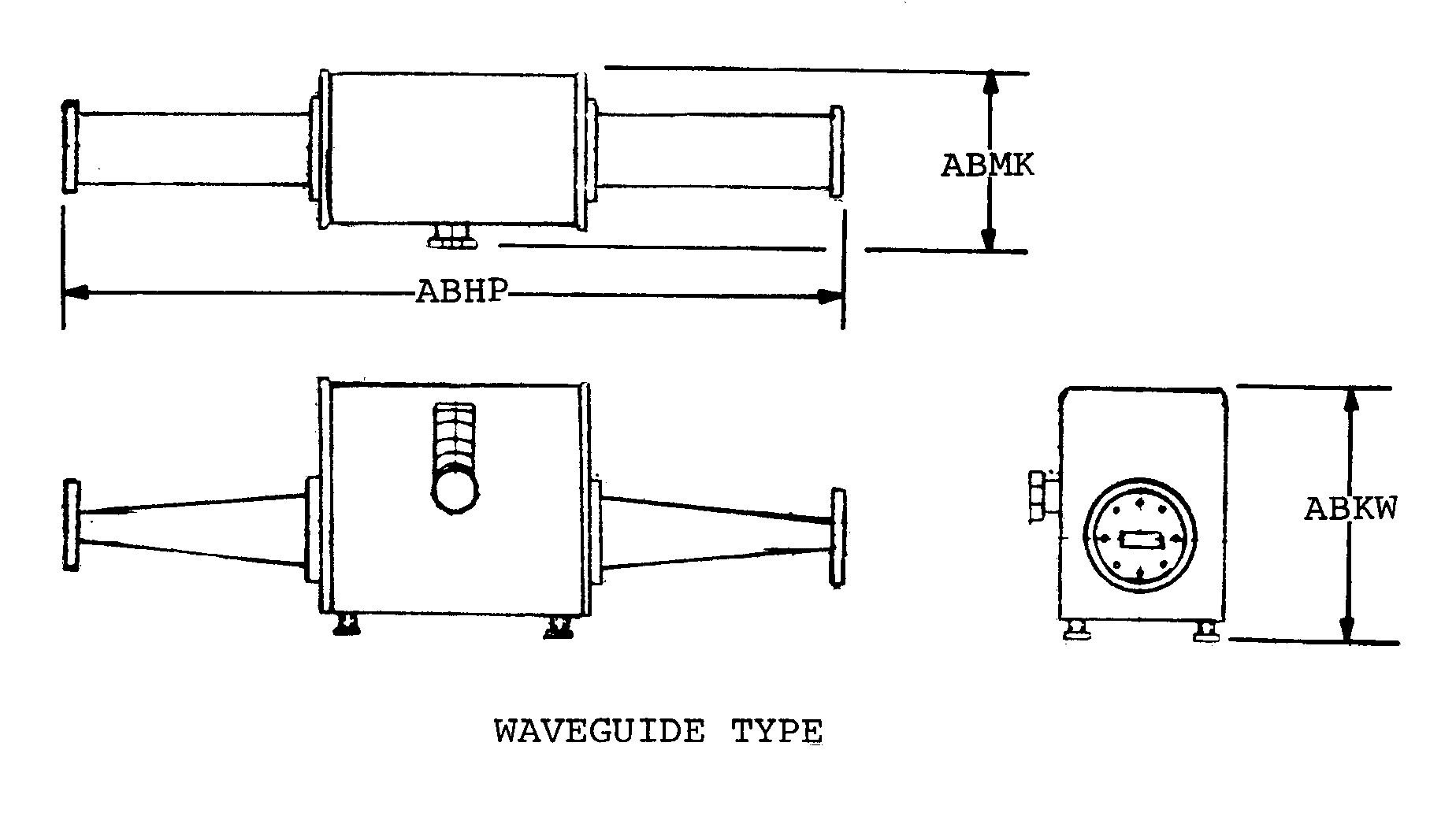

WAVEGUIDE TYPE
Cross Reference | NSN 5985-00-124-5246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1130000051 | 31196 | COMTECH PST CORP. |
| 155-A44 | 00929 | MICROLAB/FXR |
| SM-A-753233 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| 50795 | 00443 | WAVELINE, INCORPORATED |
Technical Data | NSN 5985-00-124-5246
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | WAVEGUIDE |
| FREQUENCY RANGE | 7.900 GIGAHERTZ MINIMUM AND 8.400 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.10 |
| POWER RATING | 1.0 WATTS PEAK |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 0.5 |
| OVERALL ATTENUATION RANGE IN DECIBELS | P0.0/P35.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | M0.10/P0.10 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |
| BODY STYLE | WAVEGUIDE TYPE |
| OVERALL LENGTH | 5.885 INCHES MINIMUM AND 5.915 INCHES MAXIMUM |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND, FLATTED |
| SHAFT LENGTH | 0.484 INCHES MINIMUM AND 0.516 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 FLANGE |
| WAVEGUIDE FLANGE DESIGNATION | UG-137B/U |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.138 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.995 INCHES MINIMUM AND 4.005 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| OPERATING TEMP RANGE | +45.0 TO +120.0 DEG FAHRENHEIT |
| FSC APPLICATION DATA | MICROWAVE EQUIPMENT |
