NSN 5985-00-130-0576
Part Details | FIXED ATTENUATOR
5985-00-130-0576 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: 23300200, 233-00-200, 23300200, 233-00-200, 5985-00-130-0576, 00-130-0576, 5985001300576, 001300576
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 04, 1968 | 00-130-0576 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES

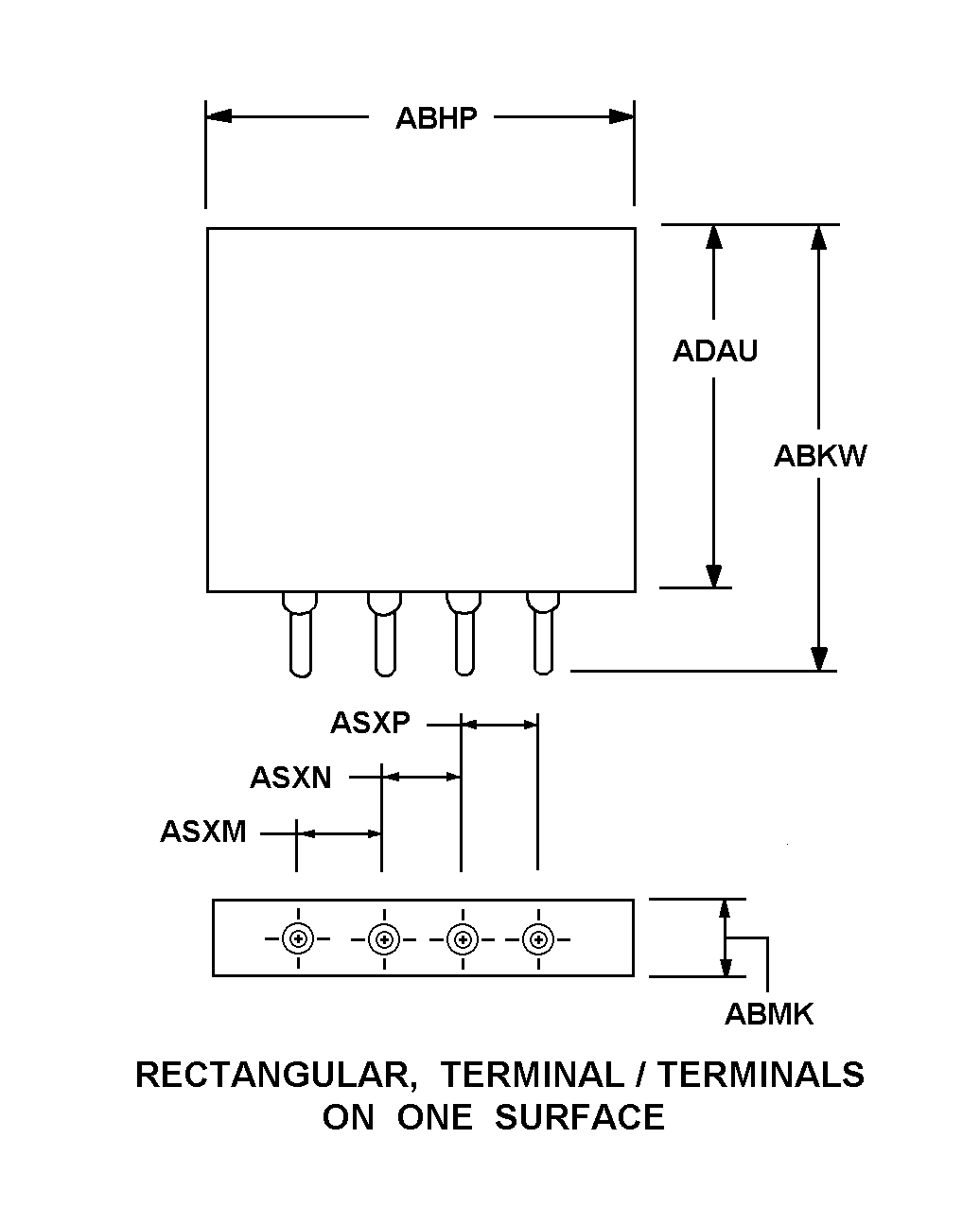

RECTANGULAR, TERMINAL/TERMINALS ON ONE SURFACE
Cross Reference | NSN 5985-00-130-0576
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 233-00-200 | 76301 | BOEING COMPANY, THEDBA BOEING |
| 233-00-200 | 19133 | MCDONNELL DOUGLAS CORPMCDONNELL DOUGLAS AEROSPACE |
Technical Data | NSN 5985-00-130-0576
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR, TERMINAL/TERMINALS ON ONE SURFACE |
| OVERALL LENGTH | 8.625 INCHES NOMINAL |
| OVERALL HEIGHT | 1.720 INCHES NOMINAL |
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| SUPPLEMENTARY FEATURES | W/5 JACK TIPS AND 1 RECEPTACLE CONNECTOR; P/O COMMUNICATION CENTRAL AN/TSC-38B |
