NSN 5985-00-135-3745
Part Details | WAVEGUIDE SEAL
5985-00-135-3745 An item or assembly designed to be fitted into or external to the end of a waveguide, in order to prevent the entrance of moisture or other foreign matter, without appreciably attenuating radio frequencies. May or may not be pressure proof.
Alternate Parts: 886C700G1, 886C700G1, 886C700, 5985-00-135-3745, 00-135-3745, 5985001353745, 001353745
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 02, 1969 | 00-135-3745 | 02477 ( SEAL, WAVEGUIDE ) |

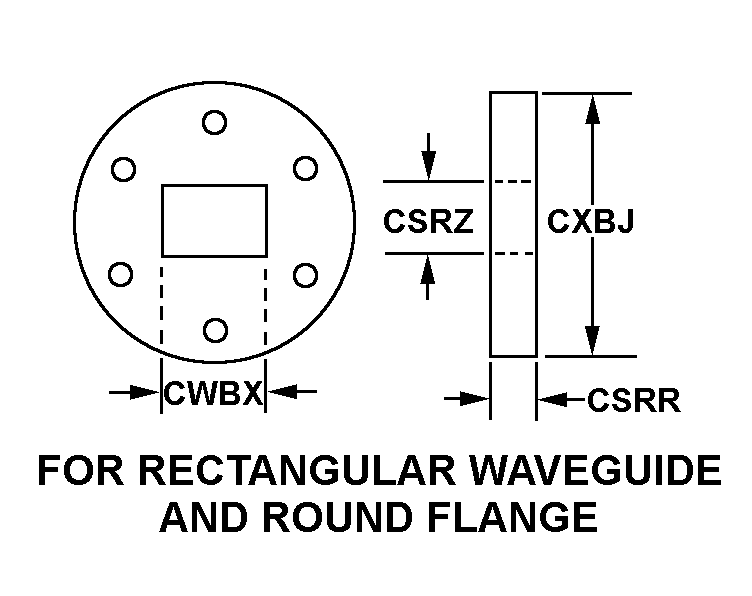

REFERENCE DRAWINGS & PICTURES
FOR RECTANGULAR WAVEGUIDE AND ROUND FLANGE
Cross Reference | NSN 5985-00-135-3745
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 886C700G1 | 30616 | EASTERN MICROWAVE CORP |
| 886C700G1 | 99971 | LOCKHEED MARTIN CORPNAVAL ELECTRONICS & SURVEILLANCE |
| 886C700 | 99971 | LOCKHEED MARTIN CORPNAVAL ELECTRONICS & SURVEILLANCE |
Technical Data | NSN 5985-00-135-3745
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FOR RECTANGULAR WAVEGUIDE AND ROUND FLANGE |
| SEAL THICKNESS | 0.180 INCHES NOMINAL |
| SEAL OUTSIDE DIAMETER | 1.940 INCHES NOMINAL |
| END ITEM IDENTIFICATION | 5841-00-772-1769 & 5841-00-813-5412 RADAR SETS |
| SUPPLEMENTARY FEATURES | 0.640 INCHES WIDE |
| FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
