NSN 5985-00-137-2855
Part Details | VARIABLE ATTENUATOR
5985-00-137-2855 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Alternate Parts: 14200160, 14200160, 5985-00-137-2855, 00-137-2855, 5985001372855, 001372855
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 16, 1971 | 00-137-2855 | 00838 ( ATTENUATOR, VARIABLE ) |
REFERENCE DRAWINGS & PICTURES

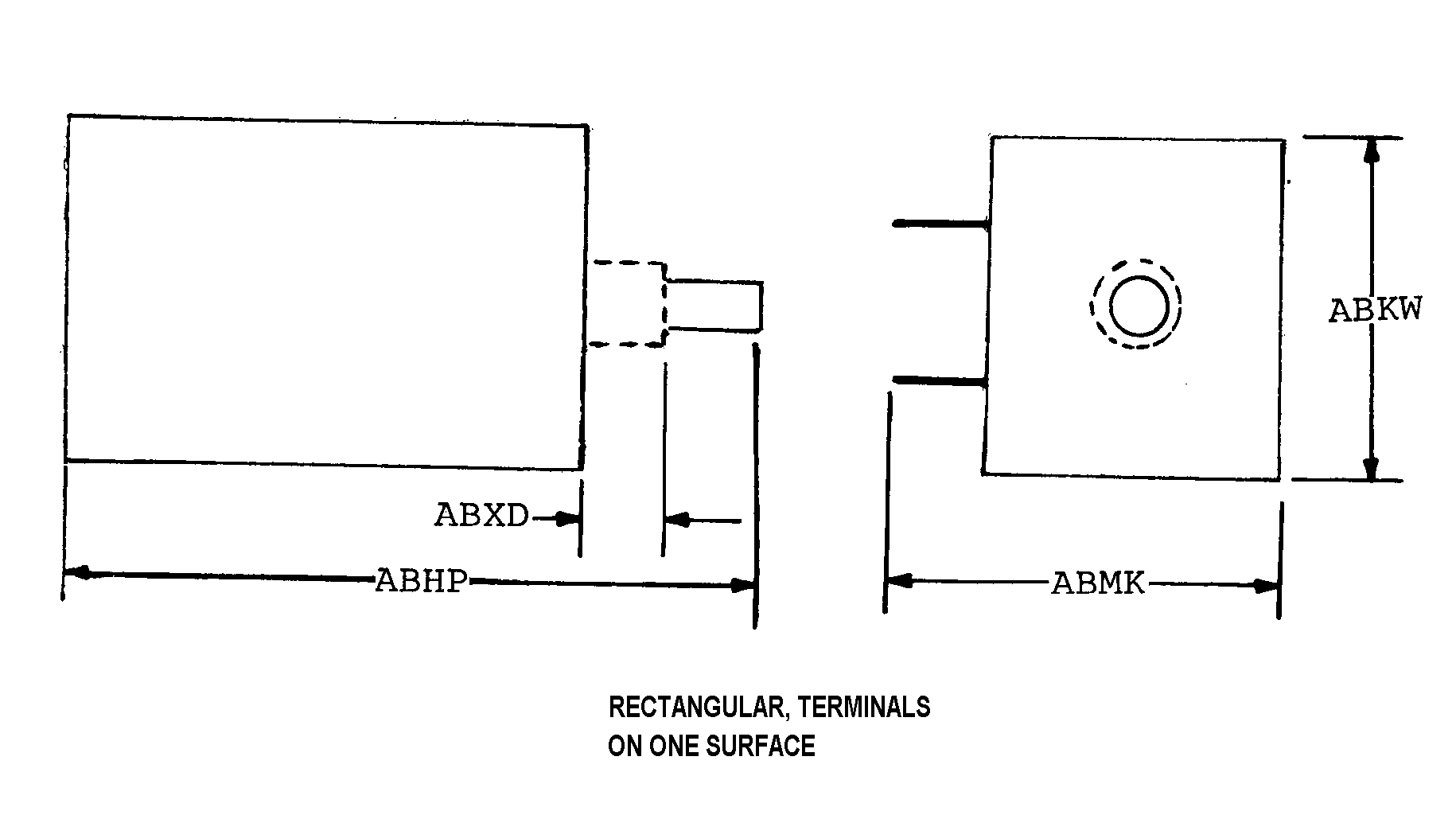

RECTANGULAR, TERMINALS ON ONE SURFACE
Cross Reference | NSN 5985-00-137-2855
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14200160 | 83942 | AERONAUTICAL INSTRUMENT AND RADIOCOMPANY, THE |
| 14200160 | 95750 | AIRCO REPUBLIC ELECTRONICS, INC.DBA AERONAUTICAL INSTRUMENT AND |
Technical Data | NSN 5985-00-137-2855
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | PRINTED CIRCUIT BOARD |
| BODY STYLE | RECTANGULAR, TERMINALS ON ONE SURFACE |
| END ITEM IDENTIFICATION | TEST SET,INTERROGATOR SYSTEM AN/APM-349 |
| FSC APPLICATION DATA | TEST SET,INTERROGATOR |
