NSN 5985-00-137-4193
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-137-4193 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 321110603, 321-11060-3, 5985-00-137-4193, 00-137-4193, 5985001374193, 001374193
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 28, 1971 | 00-137-4193 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

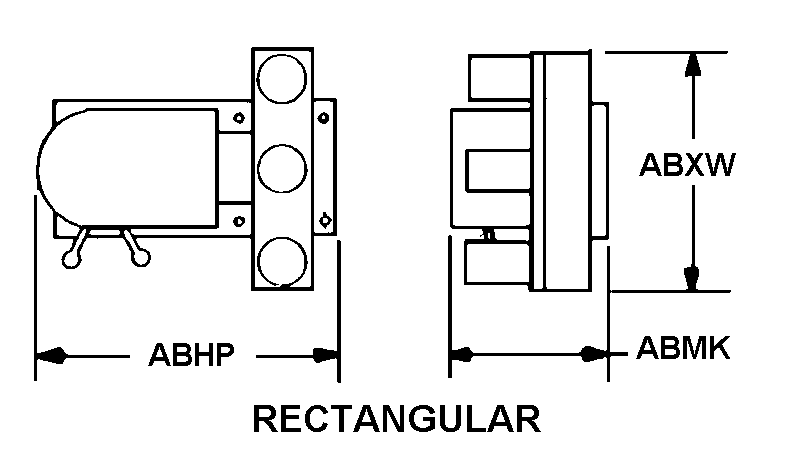

RECTANGULAR
Cross Reference | NSN 5985-00-137-4193
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 321-11060-3 | 62165 | ARROWSMITH SHELBURNE INC |
Technical Data | NSN 5985-00-137-4193
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 0.5 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 26.0 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 2 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 6 |
| TERMINAL TYPE AND QUANTITY | 6 RECEPTACLE, COAXIAL AND 2 TAB, SOLDER LUG |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 18.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 2.875 INCHES NOMINAL |
| OVERALL HEIGHT | 2.125 INCHES MAXIMUM |
| OVERALL WIDTH | 1.219 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| OPERATING TEMP RANGE | -55.0 TO +85.0 DEG CELSIUS |
