NSN 5985-00-139-2348
Part Details | WAVEGUIDE ADAPTER
5985-00-139-2348 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Alternate Parts: 208060553, 20-806055-3, 114864, 5985-00-139-2348, 00-139-2348, 5985001392348, 001392348
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 25, 1971 | 00-139-2348 | 00186 ( ADAPTER, WAVEGUIDE ) |
REFERENCE DRAWINGS & PICTURES

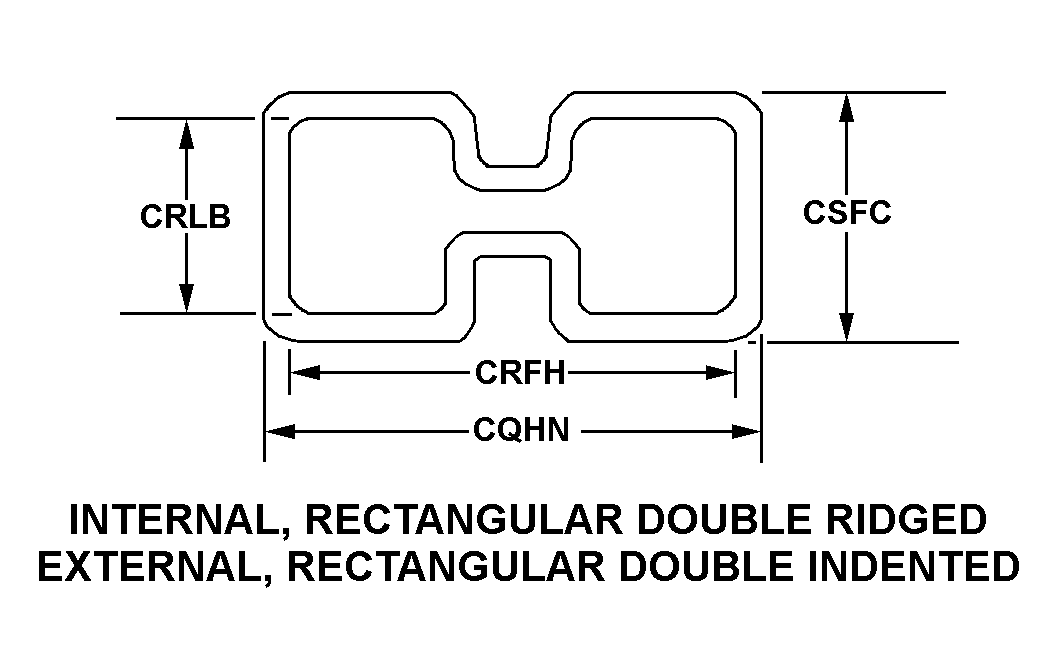

INTERNAL, RECTANGULAR DOUBLE RIDGED EXTERNAL, RECTANGULAR DOUBLE INDENTED
WAVEGUIDE TO COAXIAL
Cross Reference | NSN 5985-00-139-2348
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20-806055-3 | 07397 | GENERAL DYNAMICS ADVANCEDINFORMATION SYSTEMS INC. |
| 114864 | 80006 | LITTON SYSTEMS INCAIRTRON DIV |
Technical Data | NSN 5985-00-139-2348
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | WAVEGUIDE TO COAXIAL |
| ADAPTER LENGTH | 3.315 INCHES NOMINAL |
| ADAPTER HEIGHT | 2.000 INCHES NOMINAL |
| ADAPTER OVERALL HEIGHT | 2.450 INCHES NOMINAL |
| ADAPTER OVERALL WIDTH | 2.750 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | INTERNAL, RECTANGULAR DOUBLE RIDGED EXTERNAL, RECTANGULAR DOUBLE INDENTED |
| WAVEGUIDE OUTSIDE WIDTH | 1.600 INCHES NOMINAL |
| WAVEGUIDE INSIDE WIDTH | 1.480 INCHES NOMINAL |
| WAVEGUIDE INSIDE HEIGHT | 0.688 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 0.810 INCHES NOMINAL |
| FLANGE QUANTITY | 1 |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC |
| CONNECTOR END DESIGN | FEMALE |
| VOLTAGE STANDING WAVE RATIO | 1.60 |
| SPECIAL FEATURES | CONNECTOR BRASS MATERIAL,CADMIUM PLATED |
