NSN 5985-00-156-3636
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-156-3636 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 292042P2, 5985-00-156-3636, 00-156-3636, 5985001563636, 001563636
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 22, 1970 | 00-156-3636 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
REFERENCE DRAWINGS & PICTURES

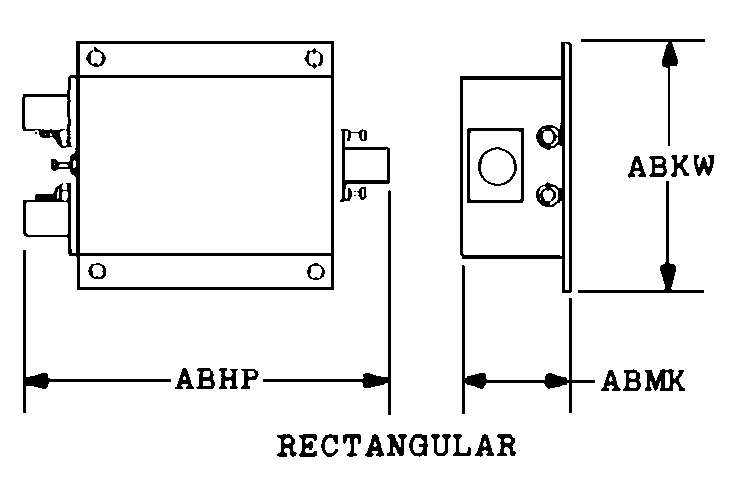

RECTANGULAR
Cross Reference | NSN 5985-00-156-3636
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 292042P2 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
Technical Data | NSN 5985-00-156-3636
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | RELAY |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 4 RECEPTACLE, COAXIAL |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 6.640 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.420 INCHES MAXIMUM |
| OVERALL WIDTH | 0.840 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.140 INCHES MINIMUM AND 0.146 INCHES MAXIMUM |
| OPERATING TEMP RANGE | -55.0 TO +125.0 DEG CELSIUS |
