NSN 5985-00-165-1779

Part Details | FIXED ATTENUATOR

5985-00-165-1779 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.

Alternate Parts: 292340, 2923-40, 247ASC1482002, 247ASC1482-002, 5985-00-165-1779, 00-165-1779, 5985001651779, 001651779

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59NOV 10, 197100-165-177914224 ( ATTENUATOR, FIXED )
REFERENCE DRAWINGS & PICTURES

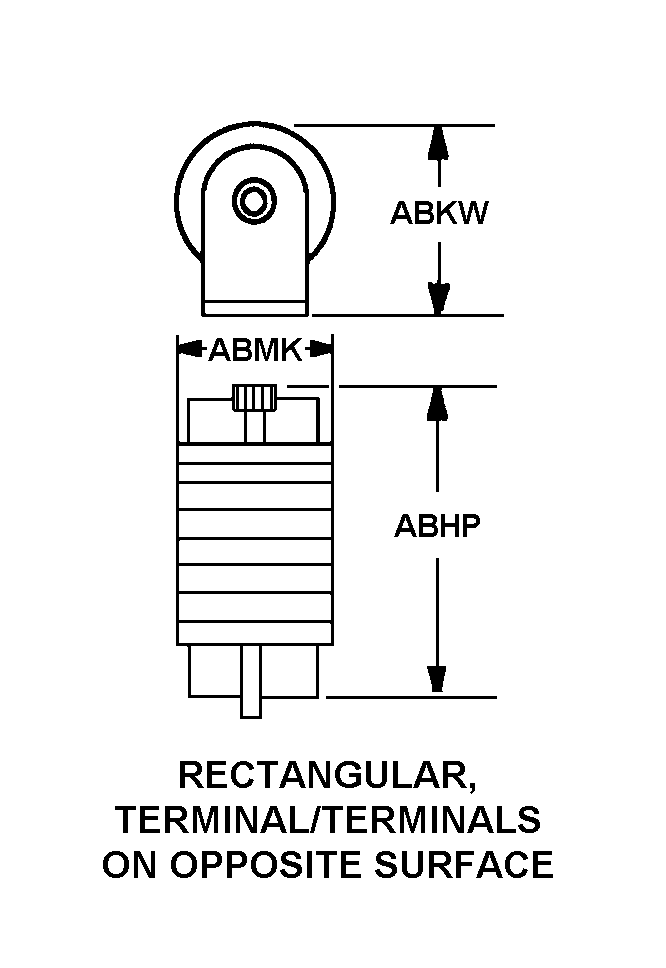

RECTANGULAR, TERMINAL/TERMINALS ON OPPOSITE SURFACES

Cross Reference | NSN 5985-00-165-1779
Part Number Cage Code Manufacturer
2923-4093459API / WEINSCHEL, INC.
247ASC1482-00230003NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT
Technical Data | NSN 5985-00-165-1779
Characteristic Specifications
APPLICATION DESIGN TRANSMISSION LINE
INPUT IMPEDANCE RATING IN OHMS50.0
OUTPUT IMPEDANCE RATING IN OHMS50.0
FREQUENCY RANGE0.000 HERTZ MINIMUM AND 12.400 GIGAHERTZ MAXIMUM
VOLTAGE STANDING WAVE RATIO1.35
VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE+0.0 TO +12.4 GIGAHERTZ
RF SIGNAL ATTENUATION IN DECIBELS24.4
ATTENUATION ACCURACY IN DECIBELSM0.03/P0.03
ATTENUATION ACCURACY REFERENCE FREQUENCY12.4 GIGAHERTZ
POWER RATING20.0 WATTS AVERAGE AND 2.0 KILOWATTS PEAK
OPERATING TEMP RANGE+0.0 TO +75.0 DEG CELSIUS
BODY STYLE RECTANGULAR, TERMINAL/TERMINALS ON OPPOSITE SURFACES
OVERALL LENGTH9.000 INCHES NOMINAL
OVERALL HEIGHT1.300 INCHES NOMINAL
OVERALL WIDTH1.000 INCHES NOMINAL
BODY MATERIAL ALUMINUM ALLOY
BODY SURFACE TREATMENT ANODIZED
TERMINAL TYPE AND QUANTITY2 CONNECTOR
COAXIAL CONNECTOR SERIES DESIGNATION N
CONNECTION TYPE PER FUNCTION FEMALE INPUT AND FEMALE OUTPUT
MOUNTING METHOD BRACKET
MOUNTING HOLE/STUD QUANTITY4
MOUNTING SLOT LENGTH0.320 INCHES NOMINAL
MOUNTING SLOT WIDTH0.180 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH0.820 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH0.680 INCHES NOMINAL
