NSN 5985-00-171-1822
Part Details | WAVEGUIDE VANE
5985-00-171-1822 An item in the form of a plate or a knifelike blade designed to be part of a waveguide attenuator or a waveguide shutter.
Alternate Parts: 5826381, 582638-1, 5985-00-171-1822, 00-171-1822, 5985001711822, 001711822
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 03, 1968 | 00-171-1822 | 02496 ( VANE, WAVEGUIDE ) |
REFERENCE DRAWINGS & PICTURES

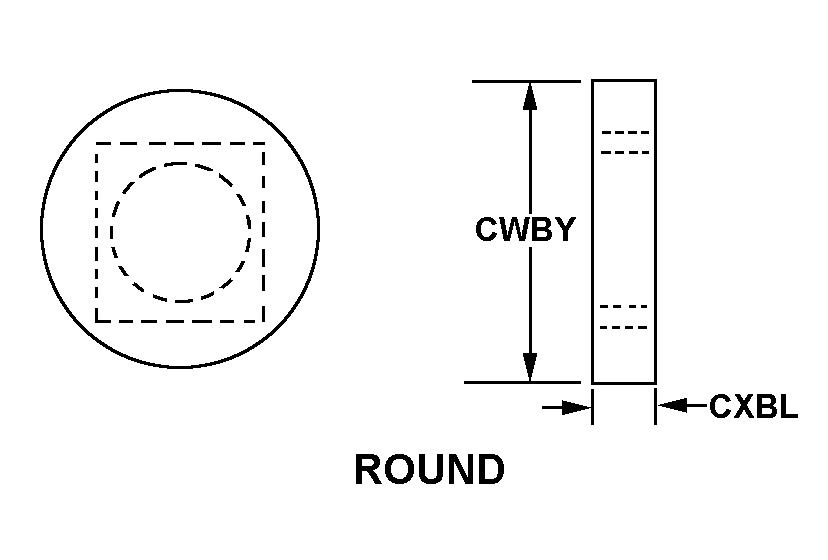

ROUND
Cross Reference | NSN 5985-00-171-1822
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 582638-1 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5985-00-171-1822
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| SPECIAL FEATURES | HAS 15 VANES |
| END ITEM IDENTIFICATION | RADAR SET AN/APQ-128 |
