NSN 5985-00-220-9825
Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-220-9825 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Alternate Parts: 3032102012, 303-2102012, 75025005, 7502-5005, 336820831, 33-682083-1, 5985-00-220-9825, 00-220-9825, 5985002209825, 002209825
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 31, 1969 | 00-220-9825 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

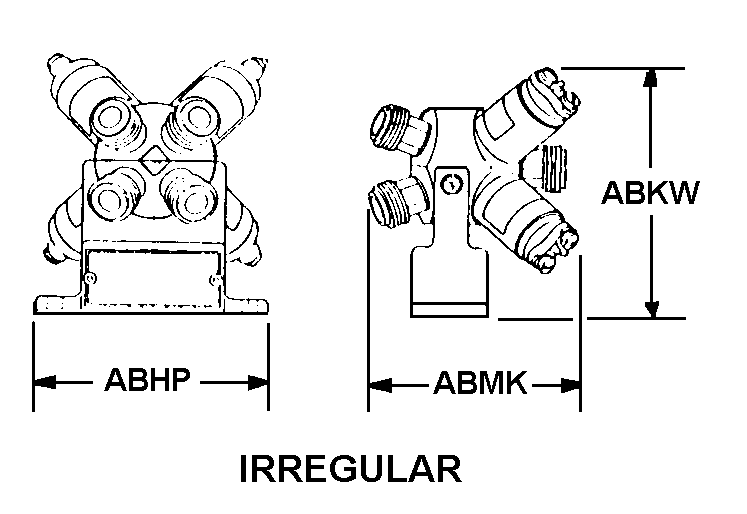

REFERENCE DRAWINGS & PICTURES
IRREGULAR
Cross Reference | NSN 5985-00-220-9825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 303-2102012 | 62165 | ARROWSMITH SHELBURNE INC |
| 7502-5005 | 96341 | COBHAM ADVANCED ELECTRONIC SOLUTIONSINC. |
| 33-682083-1 | 07397 | GENERAL DYNAMICS ADVANCEDINFORMATION SYSTEMS INC. |
Technical Data | NSN 5985-00-220-9825
| Characteristic | Specifications |
|---|---|
| ACTUATOR OPERATING METHOD | MOTOR |
| ACTUATOR VOLTAGE IN VOLTS | 28.0 NOMINAL |
| RF MAXIMUM VOLTAGE RATING | 500.0 VOLTS RMS |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |
| SWITCHING TIME | 150.0 MILLISECONDS |
| BODY STYLE | IRREGULAR |
| OVERALL LENGTH | 4.625 INCHES NOMINAL |
| OVERALL HEIGHT | 3.575 INCHES NOMINAL |
| OVERALL WIDTH | 3.500 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.280 INCHES NOMINAL |
| OPERATING TEMP RANGE | -55.0 TO +55.0 DEG CELSIUS |
