NSN 5985-00-230-5146
Part Details | FIXED ATTENUATOR
5985-00-230-5146 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Alternate Parts: A2838, 7415393G1, 7415393G1, 5985-00-230-5146, 00-230-5146, 5985002305146, 002305146
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-230-5146 | 14224 ( ATTENUATOR, FIXED ) |
REFERENCE DRAWINGS & PICTURES

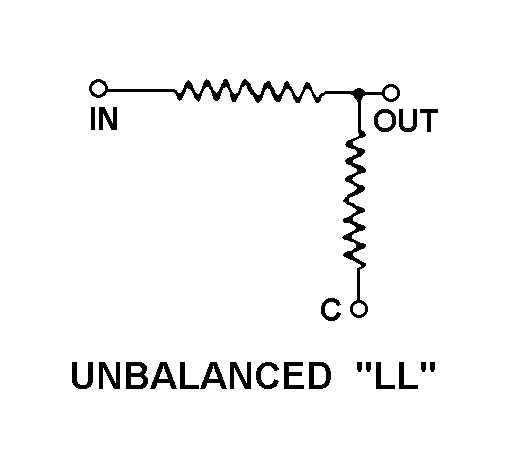

UNBALANCED "LL"
Cross Reference | NSN 5985-00-230-5146
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A2838 | 80220 | COMPONENTS CORP OF AMERICA |
| 7415393G1 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 7415393G1 | 65054 | WESTINGHOUSE ELECTRIC CORPPOWER GENERATION-GENERATOR DIV |
Technical Data | NSN 5985-00-230-5146
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| SCHEMATIC DIAGRAM DESIGNATOR | UNBALANCED "LL" |
| INPUT IMPEDANCE RATING IN OHMS | 500.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 500.0 |
| RF SIGNAL ATTENUATION IN DECIBELS | 30.0 |
| ATTENUATION ACCURACY IN DECIBELS | M3.00/P3.00 |
| MOUNTING METHOD | FLANGE W/MOUNTING HOLE |
| MOUNTING HOLE/STUD QUANTITY | 6 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.106 INCHES NOMINAL |
