NSN 5985-00-258-6375
Part Details | ANTENNA SUPPORT BASE
5985-00-258-6375
Alternate Parts: SMC523245, C523245, SMC523245, SM-C-523245, 5985-00-258-6375, 00-258-6375, 5985002586375, 002586375
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 24, 1973 | 00-258-6375 | 02843 ( BASE, ANTENNA SUPPORT ) |
REFERENCE DRAWINGS & PICTURES

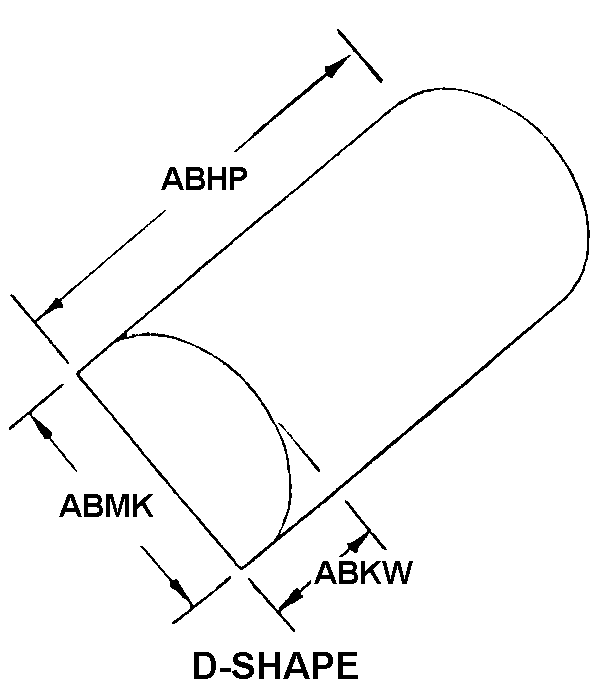

D-SHAPE
Cross Reference | NSN 5985-00-258-6375
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SMC523245 | 16758 | GENERAL MOTORS CORPDELCO ELECTRONICS DIV |
| C523245 | 16758 | GENERAL MOTORS CORPDELCO ELECTRONICS DIV |
| SM-C-523245 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5985-00-258-6375
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| MOUNTING METHOD | UNTHREADED HOLES |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING HOLE TYPE | PLAIN |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.906 INCHES |
| BASIC SHAPE STYLE | D-SHAPE |
| OVERALL LENGTH | 2.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.562 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
