NSN 5985-00-261-7587

Part Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH

5985-00-261-7587 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).

Alternate Parts: DM863H6, DM863BH6, DM863BH-6, 2137276G001, SMC920583, SM-C-920583, 5985-00-261-7587, 00-261-7587, 5985002617587, 002617587

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JUN 27, 197300-261-758705298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE )

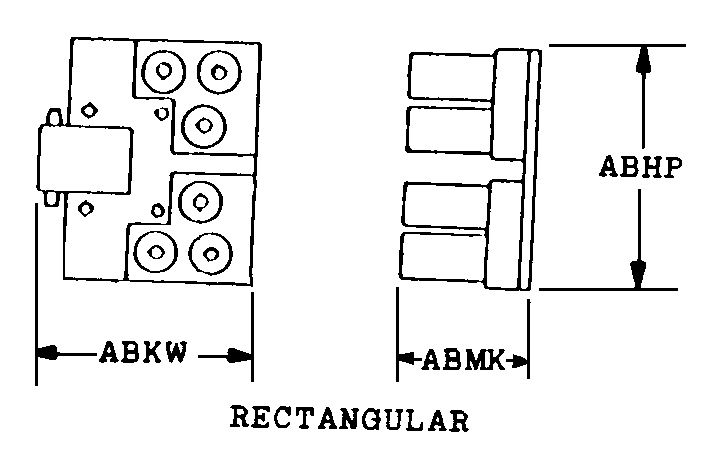

REFERENCE DRAWINGS & PICTURES

RECTANGULAR

Cross Reference | NSN 5985-00-261-7587
Part Number Cage Code Manufacturer
DM863H611332GENERAL MICROWAVE CORPORATION
DM863BH-611332GENERAL MICROWAVE CORPORATION
2137276G00128527HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED
SM-C-92058380063US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS
Technical Data | NSN 5985-00-261-7587
Characteristic Specifications
ACTUATOR OPERATING METHOD RELAY
ACTUATOR VOLTAGE IN VOLTS15.0 NOMINAL
SWITCH TYPE NONTRANSFER
POLE QUANTITY1
THROW QUANTITY1
COUPLING POSITION QUANTITY3
TERMINAL TYPE AND QUANTITY3 RECEPTACLE, COAXIAL AND 4 SOLDER STUD
COAXIAL CONNECTOR SERIES DESIGNATION SMA
CONNECTOR END DESIGN FEMALE AND MALE
SWITCH OPERATION SEQUENCE BREAKS BEFORE MAKES
SWITCHING TIME0.0001 MICROSECONDS
BODY STYLE RECTANGULAR
OVERALL LENGTH1.940 INCHES NOMINAL
OVERALL HEIGHT1.540 INCHES NOMINAL
OVERALL WIDTH0.510 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY2 UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER0.101 INCHES NOMINAL
OPERATING TEMP RANGE-65.0 TO +125.0 DEG CELSIUS
