NSN 5998-00-005-3267
Part Details | ELECTRICAL CARD HOLDER
5998-00-005-3267 A device specifically designed to retain CIRCUIT CARD ASSEMBLY or PRINTED CIRCUIT BOARD in their installed position. Excludes, RETAINER-EJECTOR, ELECTRICAL CARD; and HOLDER, PRINTED CIRCUIT BOARD.
Alternate Parts: 318468643, 3184686-4-3, 318468643, 3184686-4-3, 35117473, 35-1174-7-3, 5998-00-005-3267, 00-005-3267, 5998000053267, 000053267
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 16, 1972 | 00-005-3267 | 31930 ( HOLDER, ELECTRICAL CARD ) |

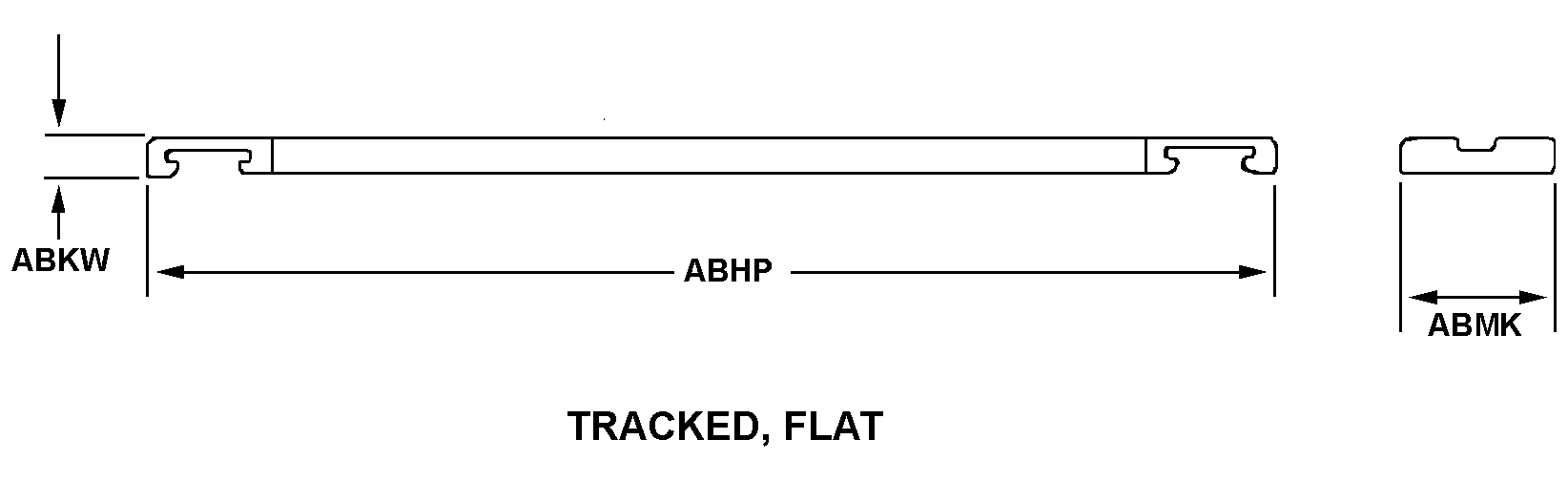

REFERENCE DRAWINGS & PICTURES
TRACKED, FLAT
Cross Reference | NSN 5998-00-005-3267
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3184686-4-3 | 77068 | ALLIED-SIGNAL INCDBA ALLIED-SIGNAL AEROSPACE CO |
| 3184686-4-3 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 35-1174-7-3 | 61081 | PENTAIR EQUIPMENT PROTECTION INC.DBA PENTAIR TECHNICAL PRODUCTS |
Technical Data | NSN 5998-00-005-3267
| Characteristic | Specifications |
|---|---|
| BODY STYLE | TRACKED, FLAT |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.180 INCHES NOMINAL |
| OVERALL WIDTH | 0.330 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | CADMIUM |
