NSN 5998-00-031-4796
Part Details | ELECTRICAL CARD EXTRACTOR
5998-00-031-4796 A device specifically designed to remove CIRCUIT CARD ASSEMBLY; or PRINTED CIRCUIT BOARD from their installed position.
Alternate Parts: B404090161, B-4040-9016-1, B40400749, B-4040-0749, 5998-00-031-4796, 00-031-4796, 5998000314796, 000314796
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 21, 1972 | 00-031-4796 | 31929 ( EXTRACTOR, ELECTRICAL CARD ) |
REFERENCE DRAWINGS & PICTURES

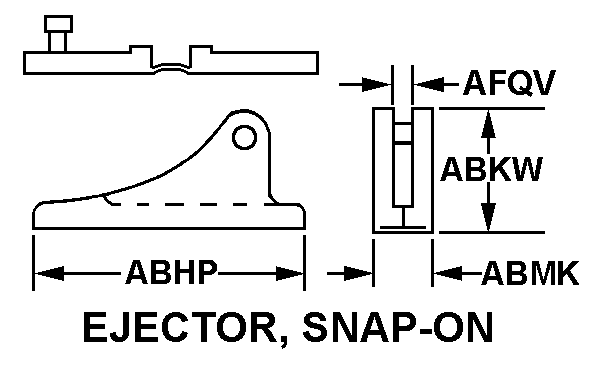

EJECTOR, SNAP-ON
Cross Reference | NSN 5998-00-031-4796
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B-4040-9016-1 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| B-4040-0749 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
Technical Data | NSN 5998-00-031-4796
| Characteristic | Specifications |
|---|---|
| BODY STYLE | EJECTOR, SNAP-ON |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| OVERALL HEIGHT | 0.344 INCHES NOMINAL |
| OVERALL WIDTH | 0.245 INCHES NOMINAL |
| COLOR | BROWN |
| MATERIAL | PLASTIC |
