NSN 5999-00-038-6142
Part Details | ELECTRONIC SHIELDING GASKET
5999-00-038-6142 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Alternate Parts: 1094340G1, 1094340G001, 5999-00-038-6142, 00-038-6142, 5999000386142, 000386142
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 10, 1972 | 00-038-6142 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |

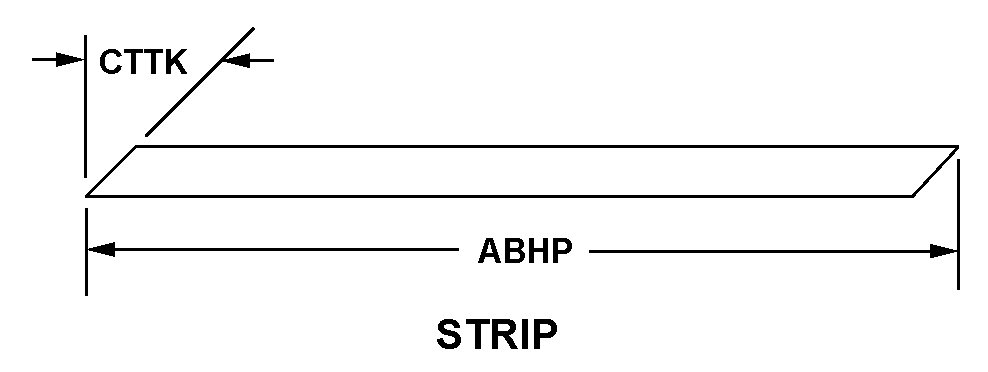

REFERENCE DRAWINGS & PICTURES
METAL
STRIP
Cross Reference | NSN 5999-00-038-6142
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1094340G1 | 28527 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED |
| 1094340G001 | 28527 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED |
Technical Data | NSN 5999-00-038-6142
| Characteristic | Specifications |
|---|---|
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | RF SHIELDING GASKET OUTER EDGE |
| CROSS-SECTIONAL SHAPE STYLE | 6 METAL |
| STYLE DESIGNATOR | STRIP |
| OVERALL LENGTH | 28.321 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| END ITEM IDENTIFICATION | RADIO SET AN/URN-20 |
