NSN 5999-00-145-7518
Part Details | ELECTRONIC SHIELDING GASKET
5999-00-145-7518 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Alternate Parts: 3968181, 396818-1, 0705011983, 07-0501-1983, 5999-00-145-7518, 00-145-7518, 5999001457518, 001457518
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 17, 1971 | 00-145-7518 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |

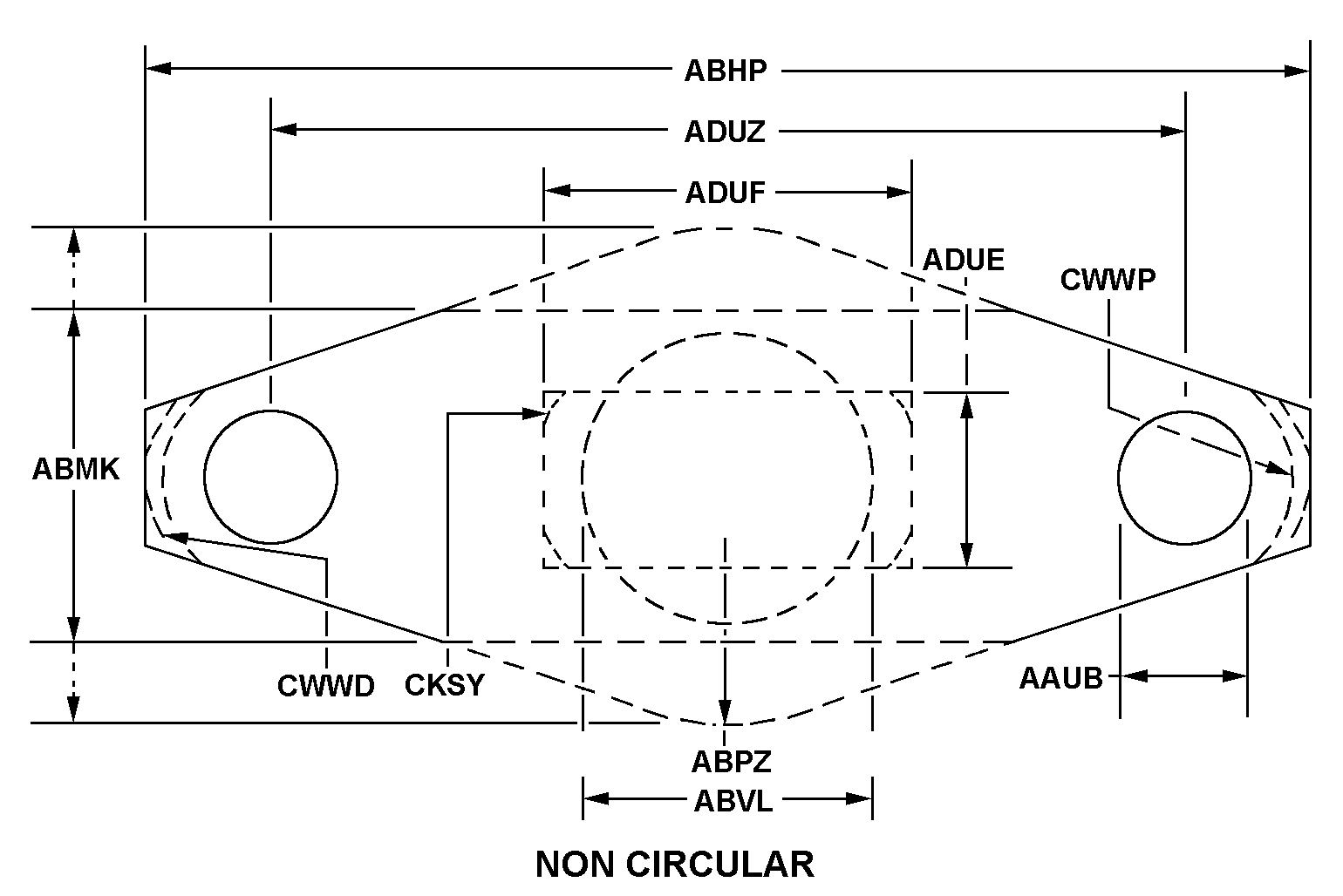

REFERENCE DRAWINGS & PICTURES
METAL AND NONMETALLIC MATERIALS
NON-CIRCULAR
Cross Reference | NSN 5999-00-145-7518
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 396818-1 | 00752 | EDO LLCDIV ANTENNA PRODUCTS |
| 07-0501-1983 | 18565 | PARKER-HANNIFIN CORPORATIONDBA PARKER CHOMERICS DIV |
Technical Data | NSN 5999-00-145-7518
| Characteristic | Specifications |
|---|---|
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |
| CROSS-SECTIONAL SHAPE STYLE | 9 METAL AND NONMETALLIC MATERIALS |
| CROSS-SECTIONAL HEIGHT | 0.062 INCHES NOMINAL |
| STYLE DESIGNATOR | NON-CIRCULAR |
| HOLE DIAMETER | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 1.310 INCHES NOMINAL |
| END RADIUS | 0.312 INCHES NOMINAL |
| APERTURE DIAMETER | 0.690 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.000 INCHES NOMINAL |
| SIDE RADIUS | 0.156 INCHES NOMINAL |
