NSN 5999-00-449-7860
Part Details | ELECTRICAL CLAMP
5999-00-449-7860 A clamp specifically designed to carry electric current. See also CLIP, ELECTRICAL; SPLICE, CONDUCTOR; TERMINAL, LUG; and RETAINER (as modified). Excludes BRACKET, PIPE.
Alternate Parts: 042710365, 04271-0365, 042710365, 04271-0365, 5999-00-449-7860, 00-449-7860, 5999004497860, 004497860
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 17, 1969 | 00-449-7860 | 00865 ( CLAMP, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

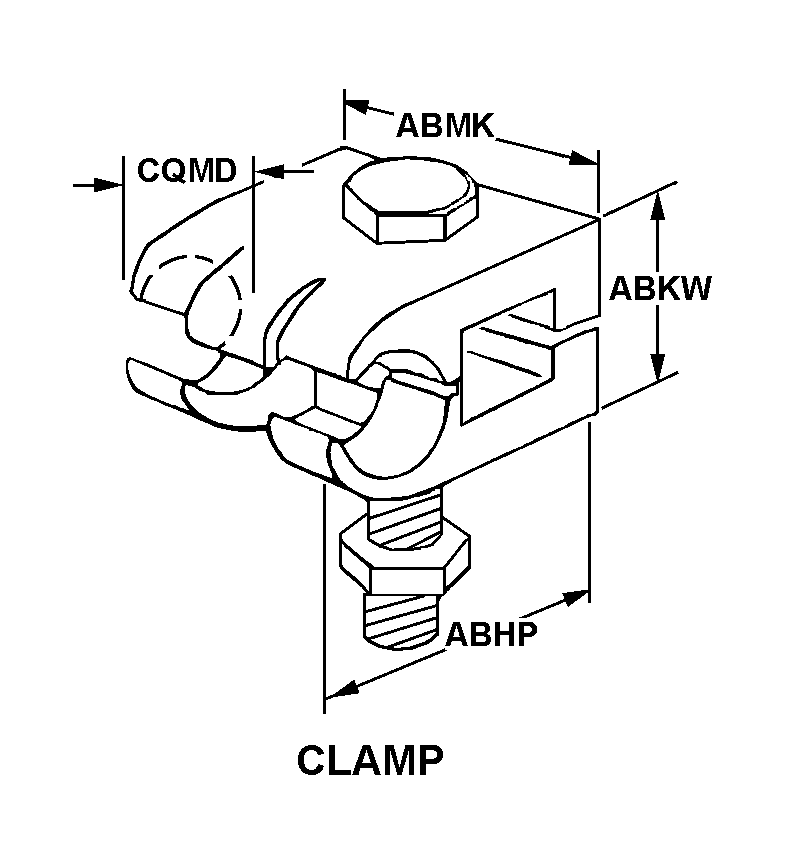

CLAMP
Cross Reference | NSN 5999-00-449-7860
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 04271-0365 | 93568 | HARSCO CORPBMY-COMBAT SYSTEMS DIV |
| 04271-0365 | 21530 | SPENCER INDUSTRIES INC |
Technical Data | NSN 5999-00-449-7860
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLAMP |
| OVERALL LENGTH | 0.906 INCHES NOMINAL |
| OVERALL HEIGHT | 1.813 INCHES NOMINAL |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.625 INCHES MINIMUM AND 0.656 INCHES MAXIMUM |
| MOUNTING METHOD | SCREW |
| MOUNTING DEVICE QUANTITY | 1 |
