NSN 5999-00-469-2492
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-469-2492 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 435783, H35783, 5999-00-469-2492, 00-469-2492, 5999004692492, 004692492
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 27, 1971 | 00-469-2492 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

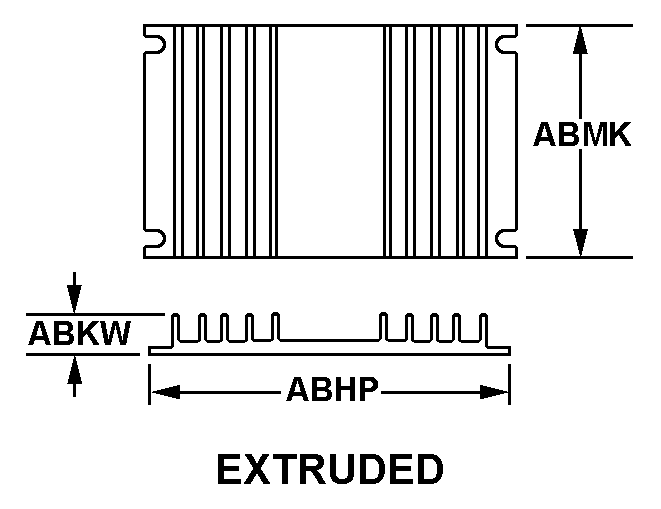

EXTRUDED
Cross Reference | NSN 5999-00-469-2492
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 435783 | 2B487 | RAYTHEON SERVICE COLOGISTICS SUPPORT CENTER |
| H35783 | 2B487 | RAYTHEON SERVICE COLOGISTICS SUPPORT CENTER |
Technical Data | NSN 5999-00-469-2492
| Characteristic | Specifications |
|---|---|
| BODY STYLE | EXTRUDED |
| OVERALL LENGTH | 6.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 4.500 INCHES NOMINAL |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-86258 MIL SPEC SINGLE TREATMENT RESPONSE |
| END ITEM IDENTIFICATION | SPARROW TEST SET AN/DPM-21 |
