NSN 5999-00-489-3258
Part Details | ELECTRONIC SHIELDING GASKET
5999-00-489-3258 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Alternate Parts: B3560000481, B356000048-1, 4809860, 48-09860, 4800023, 48-00023, 5999-00-489-3258, 00-489-3258, 5999004893258, 004893258
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 17, 1972 | 00-489-3258 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |

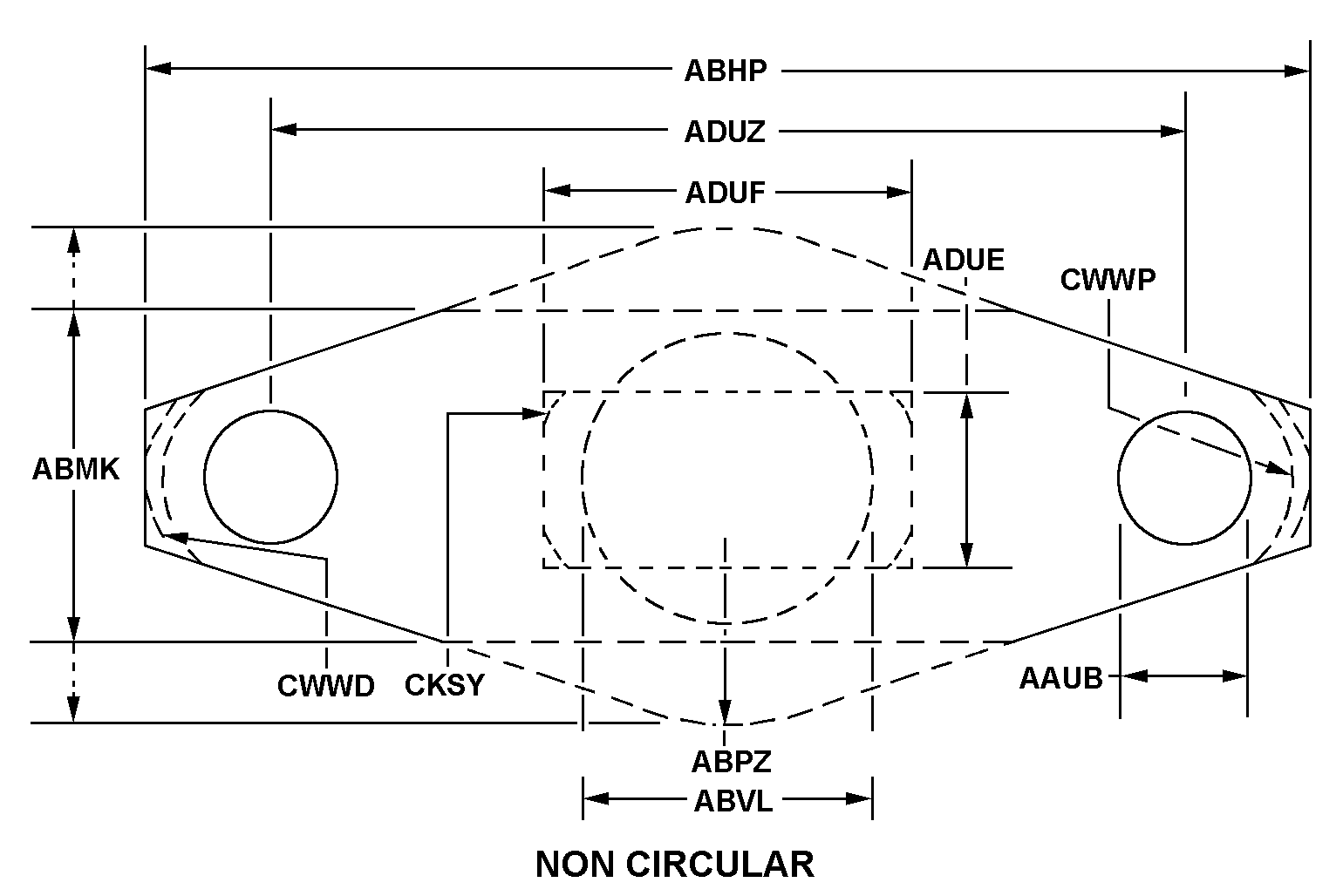

REFERENCE DRAWINGS & PICTURES
METAL AND NONMETALLIC MATERIALS
NON-CIRCULAR
Cross Reference | NSN 5999-00-489-3258
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B356000048-1 | 88818 | KEARFOTT CORPORATIONDBA KEARFOTT |
| 48-09860 | 07700 | TECHNICAL WIRE PRODUCTS LLCDBA TWP |
| 48-00023 | 07700 | TECHNICAL WIRE PRODUCTS LLCDBA TWP |
Technical Data | NSN 5999-00-489-3258
| Characteristic | Specifications |
|---|---|
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |
| CROSS-SECTIONAL SHAPE STYLE | 9 METAL AND NONMETALLIC MATERIALS |
| CROSS-SECTIONAL HEIGHT | 0.032 INCHES NOMINAL |
| STYLE DESIGNATOR | NON-CIRCULAR |
| HOLE DIAMETER | 0.132 INCHES MINIMUM AND 0.145 INCHES MAXIMUM |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| END RADIUS | 0.460 INCHES MINIMUM AND 0.480 INCHES MAXIMUM |
| APERTURE WIDTH | 0.520 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.000 INCHES NOMINAL |
| SIDE RADIUS | 0.125 INCHES NOMINAL |
