NSN 5999-00-496-5834
Part Details | ELECTRICAL CLAMP
5999-00-496-5834 A clamp specifically designed to carry electric current. See also CLIP, ELECTRICAL; SPLICE, CONDUCTOR; TERMINAL, LUG; and RETAINER (as modified). Excludes BRACKET, PIPE.
Alternate Parts: 1309DC, 1309, GA17, GA14B, GF21, 9489, GC1, GC-1, GF13B, 2, 10054265, 39H30, 5999-00-496-5834, 00-496-5834, 5999004965834, 004965834
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-496-5834 | 00865 ( CLAMP, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

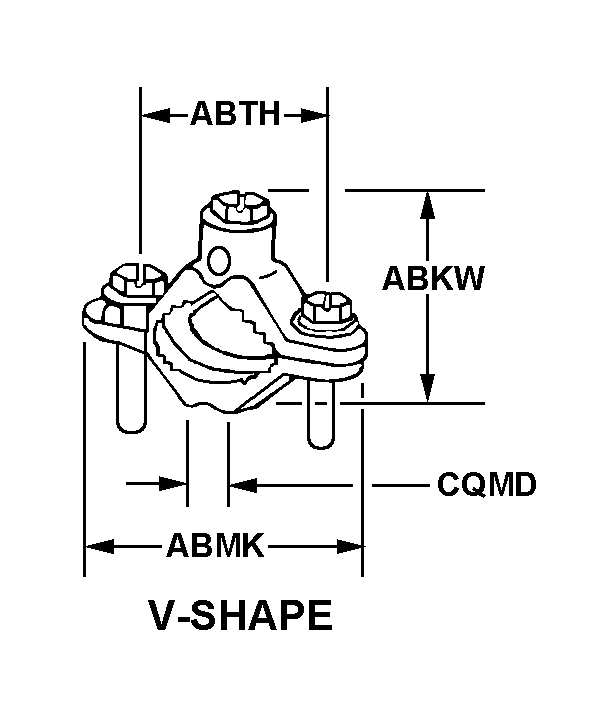

V-SHAPE
Cross Reference | NSN 5999-00-496-5834
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1309DC | 05500 | BRIDGEPORT FITTINGS INC |
| 1309 | 05500 | BRIDGEPORT FITTINGS INC |
| GA17 | 72971 | EFCOR INC |
| GA14B | 72971 | EFCOR INC |
| GF21 | 83879 | EGS ELECTRIC CO LLC |
| 9489 | 03743 | EGS ELECTRICAL GROUPAPPLETON DIV |
| GC-1 | 24381 | NEER MFG CO INC |
| GF13B | 77860 | SHERMAN H B MFG CODIV OF DAYTON-WALTHER CORP |
| 2 | 56501 | THOMAS & BETTS CORPORATION |
| 10054265 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 39H30 | 36346 | UNION CARBIDE CORPSUB OF DOW CO THE |
Technical Data | NSN 5999-00-496-5834
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | V-SHAPE |
| OVERALL HEIGHT | 1.969 INCHES NOMINAL |
| OVERALL WIDTH | 2.359 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 1.625 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.750 INCHES NOMINAL |
| MOUNTING METHOD | SCREW |
| MOUNTING DEVICE QUANTITY | 2 |
| CONDUCTOR ACCOMMODATION QUANTITY | 1 |
| SPECIAL FEATURES | 2-3/8 IN. LG,3/4 IN. W,2-1/8 IN. H |
