NSN 5999-00-497-9266
Part Details | ELECTRONIC SHIELDING GASKET
5999-00-497-9266 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Alternate Parts: 003622, 5999-00-497-9266, 00-497-9266, 5999004979266, 004979266
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 01, 1969 | 00-497-9266 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
REFERENCE DRAWINGS & PICTURES
METAL WITH SOFT FILLER

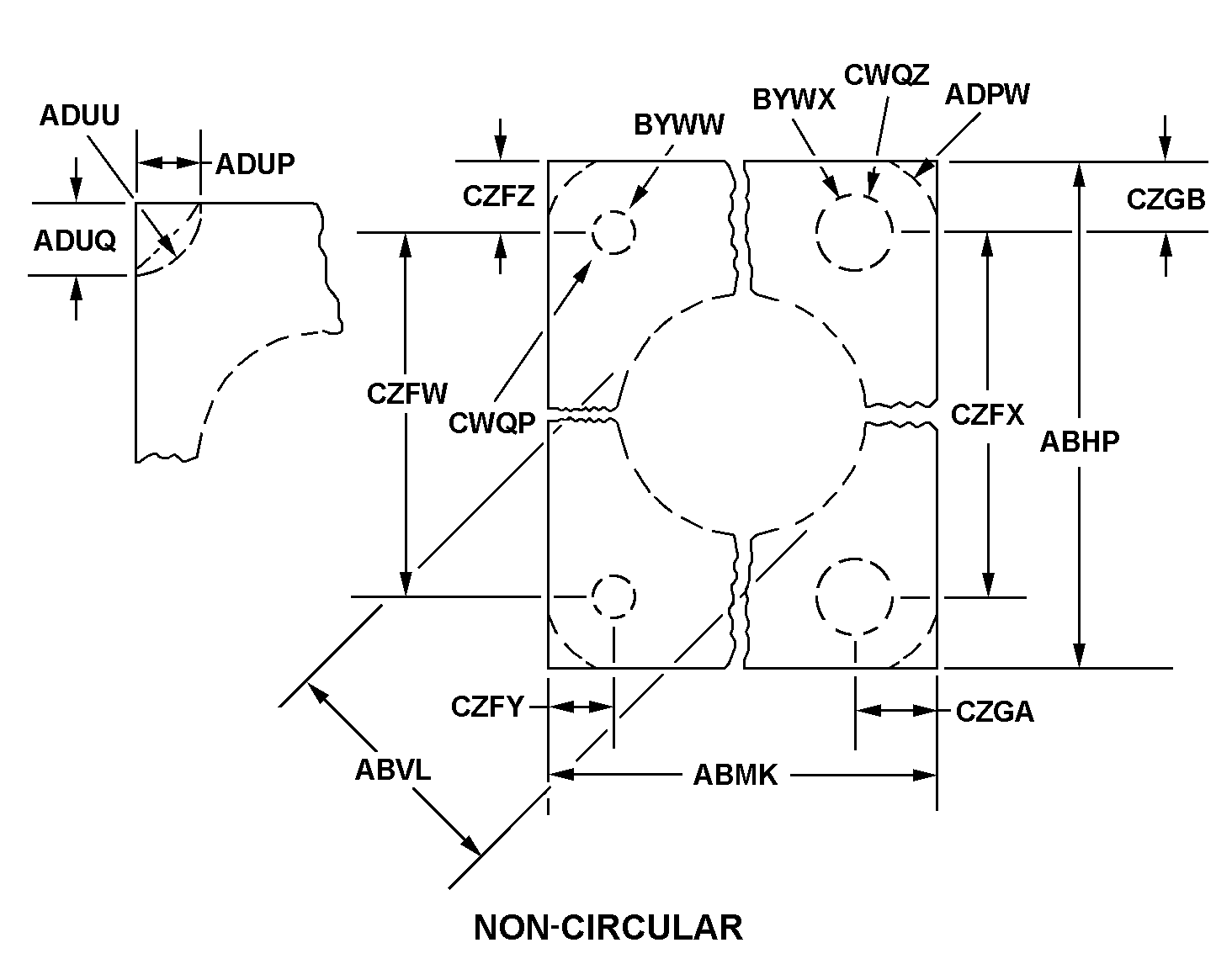

NON-CIRCULAR SQUARE W/O APERATURE
Cross Reference | NSN 5999-00-497-9266
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 003622 | 19156 | MOOG INC.DIV MOOG AIRCRAFT, SALT LAKE |
Technical Data | NSN 5999-00-497-9266
| Characteristic | Specifications |
|---|---|
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |
| CROSS-SECTIONAL SHAPE STYLE | 0 METAL WITH SOFT FILLER |
| CROSS-SECTIONAL HEIGHT | 0.020 INCHES NOMINAL |
| STYLE DESIGNATOR | NON-CIRCULAR SQUARE W/O APERATURE |
| OVERALL LENGTH | 7.250 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| SMALLEST BOLT HOLE DIAMETER | 0.140 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN SMALLEST BOLT HOLES | 3.942 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LARGEST BOLT HOLES | 3.000 INCHES NOMINAL |
| OUTSIDE EDGE TO SMALLEST BOLT HOLE CENTER DISTANCE ALONG WIDTH | 1.000 INCHES NOMINAL |
| OUTSIDE EDGE TO LARGEST BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.312 INCHES NOMINAL |
| SMALLEST BOLT HOLE QUANTITY | 6 |
