NSN 5999-00-504-5692
Part Details | ELECTRICAL CLAMP
5999-00-504-5692 A clamp specifically designed to carry electric current. See also CLIP, ELECTRICAL; SPLICE, CONDUCTOR; TERMINAL, LUG; and RETAINER (as modified). Excludes BRACKET, PIPE.
Alternate Parts: 5051534002, 5051534002, 5051534002, 505-1534-002, 5999-00-504-5692, 00-504-5692, 5999005045692, 005045692
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-504-5692 | 00865 ( CLAMP, ELECTRICAL ) |

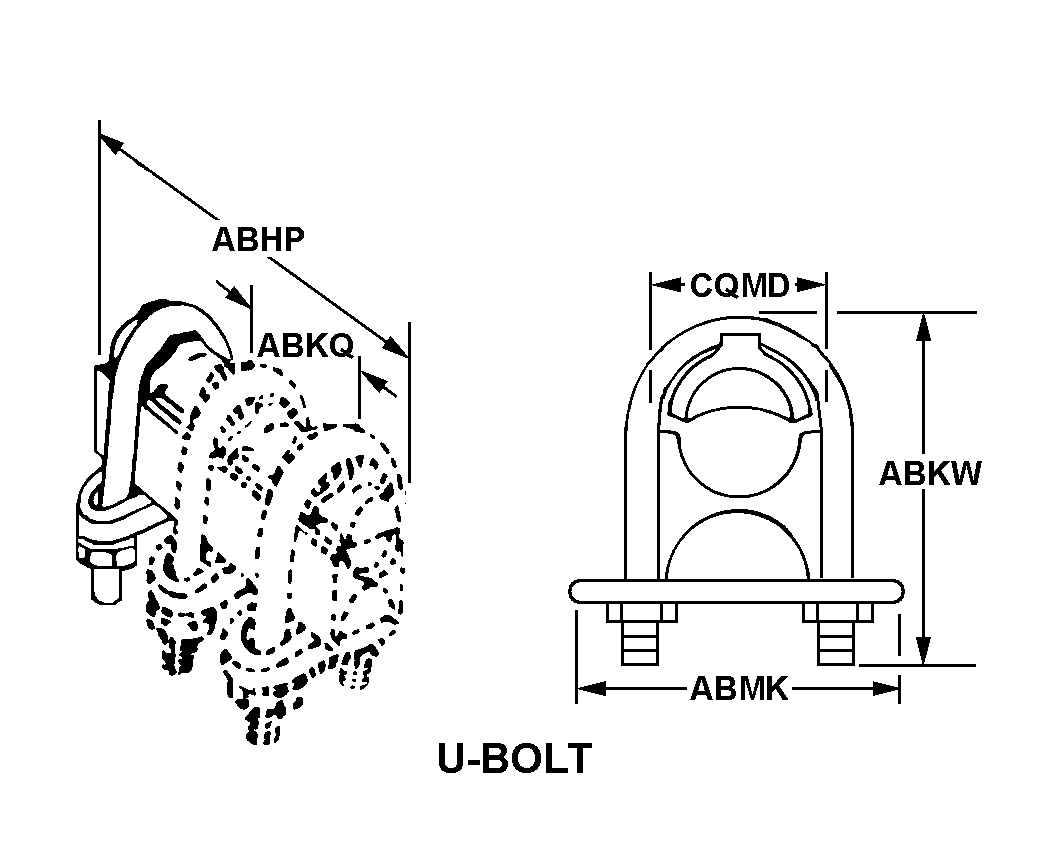

REFERENCE DRAWINGS & PICTURES
U-BOLT
Cross Reference | NSN 5999-00-504-5692
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5051534002 | 24617 | GENERAL MOTORS CORP |
| 5051534002 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 505-1534-002 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5999-00-504-5692
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | U-BOLT |
| OVERALL LENGTH | 0.937 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.687 INCHES NOMINAL |
| OVERALL HEIGHT | 0.375 INCHES NOMINAL |
| OVERALL WIDTH | 0.860 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.436 INCHES NOMINAL |
| MOUNTING METHOD | BOLT |
| MOUNTING DEVICE QUANTITY | 4 |
| CONDUCTOR ACCOMMODATION QUANTITY | 1 |
| FSC APPLICATION DATA | PLATE TUNER,POWER AMPLIFIER |
