NSN 5999-00-549-8629
Part Details | ELECTRICAL SHIELD RETAINER
5999-00-549-8629 An item specifically designed to position and restrain the movement of an electrical shield in relation to another item. Retainer must not be an integral part of the shield.
Alternate Parts: 7SB2, 4414311028202, 441-43-11-028-202, 20K20537, 1022, BA98258, BA98162, BA98258, BA98162, 8175929, 5999-00-549-8629, 00-549-8629, 5999005498629, 005498629
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-549-8629 | 16130 ( RETAINER, ELECTRICAL SHIELD ) |
REFERENCE DRAWINGS & PICTURES

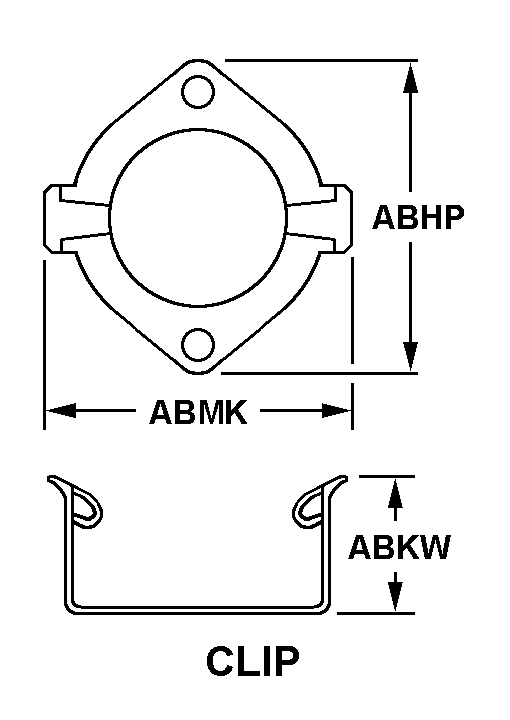

CLIP
Cross Reference | NSN 5999-00-549-8629
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7SB2 | 71785 | CINCH CONNECTORS, INC. |
| 441-43-11-028-202 | 71785 | CINCH CONNECTORS, INC. |
| 20K20537 | 71785 | CINCH CONNECTORS, INC. |
| 1022 | 71785 | CINCH CONNECTORS, INC. |
| BA98258 | 71785 | CINCH CONNECTORS, INC. |
| BA98162 | 71785 | CINCH CONNECTORS, INC. |
| BA98258 | 3B4M0 | LUCENT TECHNOLOGIES INCCORPORATE HEADQUARTERS |
| BA98162 | 3B4M0 | LUCENT TECHNOLOGIES INCCORPORATE HEADQUARTERS |
| 8175929 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 5999-00-549-8629
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | NICKEL |
| STYLE DESIGNATOR | CLIP |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| OVERALL WIDTH | 0.770 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | SPRING CLIP |
