NSN 5999-00-615-8728
Part Details | ELECTRICAL SHIELD RETAINER
5999-00-615-8728 An item specifically designed to position and restrain the movement of an electrical shield in relation to another item. Retainer must not be an integral part of the shield.
Alternate Parts: T910015L, T9-1001-5L, 17757632, 1775763-2, 5999-00-615-8728, 00-615-8728, 5999006158728, 006158728
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-615-8728 | 16130 ( RETAINER, ELECTRICAL SHIELD ) |
REFERENCE DRAWINGS & PICTURES

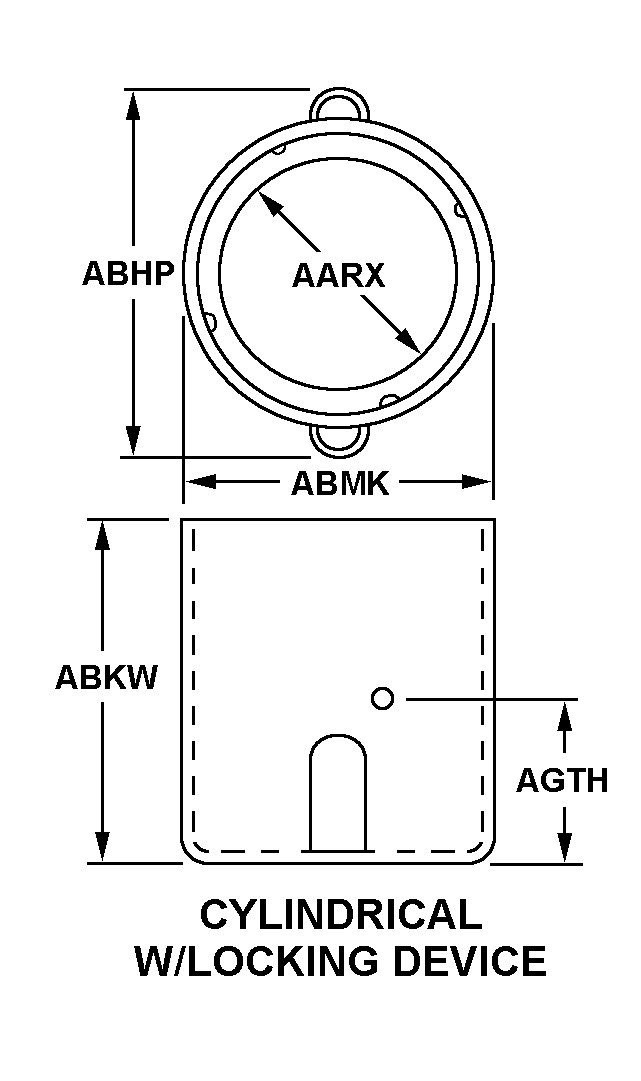

CYLINDRICAL W/LOCKING DEVICE
Cross Reference | NSN 5999-00-615-8728
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T9-1001-5L | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIAINC |
| 1775763-2 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5999-00-615-8728
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | CYLINDRICAL W/LOCKING DEVICE |
| INSIDE DIAMETER | 1.130 INCHES NOMINAL |
| OVERALL LENGTH | 1.812 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.620 INCHES NOMINAL |
| OVERALL WIDTH | 1.378 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SURFACE TO LOCKING DEVICE | 1.090 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | FRICTION FASTENER |
