NSN 5999-00-642-1248
Part Details | LIGHT-SWITCH ASSEMBLY
5999-00-642-1248 An electrical device consisting of a Switch (1) and two or more lights, or two or more switches and two or more lights, mounted on a common mounting. The lights are not intended for illumination but are present for the purpose of indication. Each item may be separable and capable of functioning individually, or the items may be fabricated into a common inseparable body, incapable of functioning individually. It may include wall plate or box cover and it may be complete with box. Excludes push, pull, push-pull, and toggle switches with a lamp mounted integrally in the actuator.
Alternate Parts: 6981ED173145, 6981ED173-145, 5999-00-642-1248, 00-642-1248, 5999006421248, 006421248
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-642-1248 | 17647 ( LIGHT-SWITCH ASSEMBLY ) |
REFERENCE DRAWINGS & PICTURES

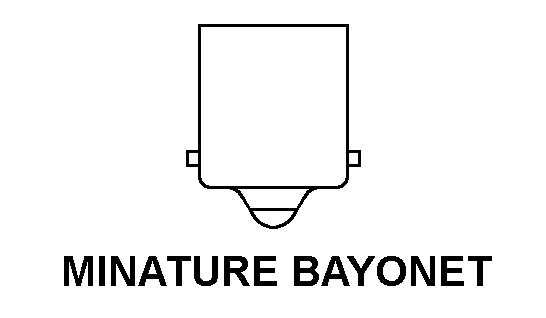

MINIATURE BAYONET
Cross Reference | NSN 5999-00-642-1248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6981ED173-145 | 27192 | DRS POWER & CONTROL TECHNOLOGIES,INC |
Technical Data | NSN 5999-00-642-1248
| Characteristic | Specifications |
|---|---|
| LAMP BASE STYLE | MINIATURE BAYONET |
| LAMP BULB SIZE DESIGNATOR | G-4-1/2 |
| LENS COLOR | RED |
| MATERIAL | PLASTIC |
| ENVIRONMENTAL PROTECTION | SPRAY TIGHT |
| FEATURES PROVIDED | TRANSFORMER AND THREADED ENTRANCE AND BOX AND BOX COVER |
| SPECIAL FEATURES | INCLOSURE MATL:PLASTIC;ASSY O/A H:4.625 IN. NOM.;SWITCH TYPE:ROTARY 1ST VARIATION,PUSH 2ND VARIATION;SWITCH CURRENT RATING IN AMPS:15.0 1ST VARIATION,10.0 2ND VARIATION;SWITCH CURRENT TYPE:1ST & 2ND VARIATION AC;LAMP:INCLUDED;ASSY O/A W:4.750 IN. NOM.;ASSY O/A L:10.750 IN. NOM.;MNTS BY (4) 13/32 IN. DIA. MTG HOLES ON 3-1/2 IN. BY 9-7/8 IN. MTG CNTRS;VOLTAGE RATING:440.0 V NOM. 1ST & 2ND VARIATION;INDIVIDUAL SWITCH QTY:1 FOR 1ST & 2ND VARIATION;LIGHT QTY:1;PRIMARY VOLTAGE RATING:440.0 V NOM.;SECONDARY VOLTAGE RATING:4.0 V NOM.;LUMINOUS ACTUATOR:NOT INCLUDED;THREADED INTEREST QTY:2;THREAD LOCATION:INTERNAL;CONTACT ARRANGEMENT:1ST VARIATION,2 CIRCUIT,DOUBLE BREAK,3POSITION,1 POSITION MOMENTARY, 2ND VARIATION SPDT,DOUBLE BREAK,NORMALLY OPEN;OPENING THREAD SIZE:1 IN. IPS 11-1/2;SPECIAL MARKINGS:STOP-ON-START,EMERGENCY RUN |
