NSN 5999-00-753-0914
Part Details | DELAY LINE
5999-00-753-0914 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Alternate Parts: 108924, 5999-00-753-0914, 00-753-0914, 5999007530914, 007530914
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-753-0914 | 06373 ( DELAY LINE ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

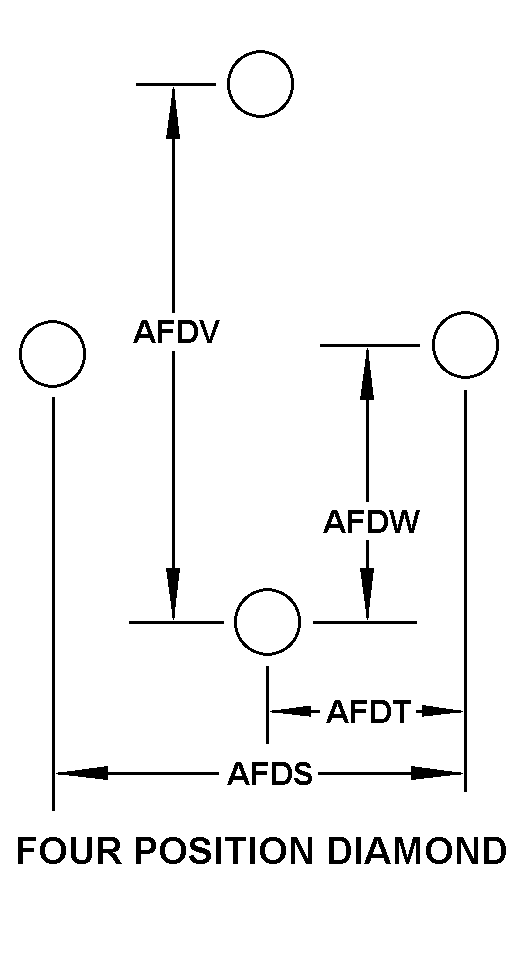

FOUR POSITION DIAMOND
Cross Reference | NSN 5999-00-753-0914
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108924 | 24930 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, RADAR |
Technical Data | NSN 5999-00-753-0914
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | LUMPED CONSTANT |
| DELAY TIME VARIATION METHOD | VARIABLE |
| INDIVIDUAL SECTION QUANTITY | 1 |
| OPERATING TEMP RANGE | +0.0 TO +60.0 DEG CELSIUS |
| INPUT IMPEDANCE RATING | 200.000 OHMS |
| OUTPUT IMPEDANCE RATING | 200.000 OHMS |
| ATTENUATION IN DECIBELS | 3.000 |
| VOLTAGE RATING | 15.000 VOLTS MAXIMUM |
| PULSE RISE TIME RATING | 0.1 MICROSECONDS |
| ADJUSTMENT DEVICE DRIVE TYPE | SLOTTED SCREW |
| ADJUSTMENT DEVICE QUANTITY | 1 |
| BODY STYLE | RECTANGULAR |
| BODY LENGTH | 4.469 INCHES MINIMUM AND 4.500 INCHES MAXIMUM |
| BODY WIDTH | 1.969 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |
| BODY DEPTH | 0.562 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 4 WIRE HOOK |
| MOUNTING FACILITY | THREADED HOLE |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.112-40 UNC |
| THREAD CLASS | 2B |
| THREAD PITCH DIAMETERS | +0.1000 TO +0.1001 INCHES |
| MOUNTING PROVISION ARRANGEMENT STYLE | FOUR POSITION DIAMOND |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.734 INCHES MINIMUM AND 1.766 INCHES MAXIMUM |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.859 INCHES MINIMUM AND 0.891 INCHES MAXIMUM |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 4.234 INCHES MINIMUM AND 4.266 INCHES MAXIMUM |
| SHORTEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.109 INCHES MINIMUM AND 2.141 INCHES MAXIMUM |
