NSN 5999-00-763-8693
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-763-8693 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 25168131, 2516813-1, 25168131, 2516813-1, 5999-00-763-8693, 00-763-8693, 5999007638693, 007638693
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 06, 1968 | 00-763-8693 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

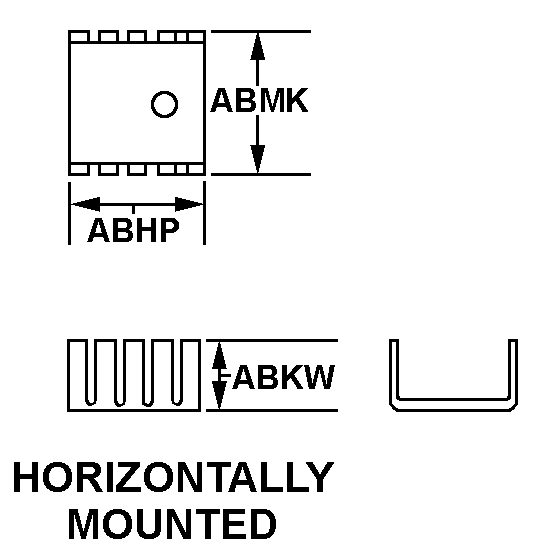

HORIZONTALLY MOUNTED
Cross Reference | NSN 5999-00-763-8693
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2516813-1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 2516813-1 | 2B487 | RAYTHEON SERVICE COLOGISTICS SUPPORT CENTER |
Technical Data | NSN 5999-00-763-8693
| Characteristic | Specifications |
|---|---|
| BODY STYLE | HORIZONTALLY MOUNTED |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 0.380 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 5052 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-318 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CHROMATE |
| END ITEM IDENTIFICATION | MK4747OD0,TEST SET |
