NSN 6130-00-254-5159
Part Details | INTERRUPTER VIBRATOR
6130-00-254-5159 An electromechanical device which uses a coil operated switching mechanism to convert a direct current input into a pulsating direct current output of the same value. The direct current input is periodically interrupted at the resonant frequency of a coil driven vibrating armature (reed). The resultant pulsating direct current output produces an inherent alternating current component necessary for ultimate purposes of transformation. It does not include a means of amplification or rectification. For items designed to operate over a wide and comparatively high frequency range and whose drive coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC.
Alternate Parts: VN93C, VN93C, 1215009P2, 121-5009P2, 1215009P2, 121-5009P2, 1215009P2, 121-5009P2, 6130-00-254-5159, 00-254-5159, 6130002545159, 002545159
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | JAN 01, 1963 | 00-254-5159 | 00743 ( VIBRATOR, INTERRUPTER ) |
REFERENCE DRAWINGS & PICTURES

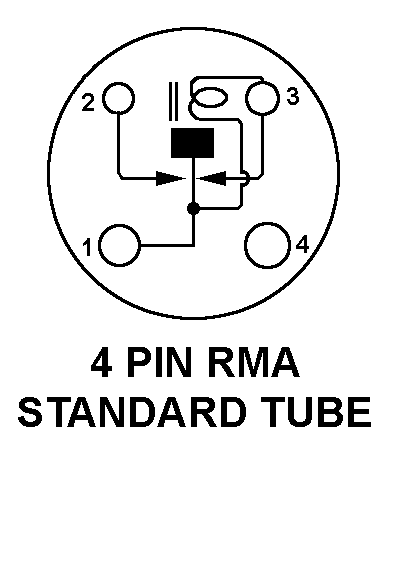

4 PIN STANDARD TUBE
Cross Reference | NSN 6130-00-254-5159
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| VN93C | 14655 | CORNELL-DUBILIER ELECTRONICS |
| VN93C | 00853 | CORNELL-DUBILIER MARKETING, INC. |
| 121-5009P2 | 94144 | RAYTHEON COMPANYDBA RAYTHEON |
| 121-5009P2 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 121-5009P2 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 6130-00-254-5159
| Characteristic | Specifications |
|---|---|
| INPUT VOLTAGE RATING | A6.3 DC VOLTS |
| INPUT CURRENT RATING | 10.0 AMPERES NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | UNEQUAL |
| OUTPUT FREQUENCY RATING | 115.0 HERTZ MINIMUM AND 128.9 HERTZ MAXIMUM |
| REED TYPE | CN ANY ACCEPTABLE |
| HERMETICALLY SEALED FEATURE | PROVIDED |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| OVERALL LENGTH | 3.125 INCHES NOMINAL |
| BASE CONNECTION WIRING STYLE | 4 PIN STANDARD TUBE |
