NSN 6130-00-318-9127
Part Details | METALLIC RECTIFIER
6130-00-318-9127 An electrical item (the working element of which is constructed essentially of metallic substances) which changes alternating current to direct current by the rectifying action occurring at the junction interface between a metallic conductor and a semiconductor. Excludes sets of metallic rectifiers which are not rated for rectifying capabilities but are used as suppressors. For items containing germanium or silicon, see SEMICONDUCTOR DEVICE (1), DIODE; SEMICONDUCTOR DEVICE SET and RECTIFIER, SEMICONDUCTOR DEVICE. For a complete power supply utilizing metallic rectifiers, see POWER SUPPLY.
Alternate Parts: B13124, 6130-00-318-9127, 00-318-9127, 6130003189127, 003189127
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | JAN 01, 1963 | 00-318-9127 | 00299 ( RECTIFIER, METALLIC ) |
REFERENCE DRAWINGS & PICTURES

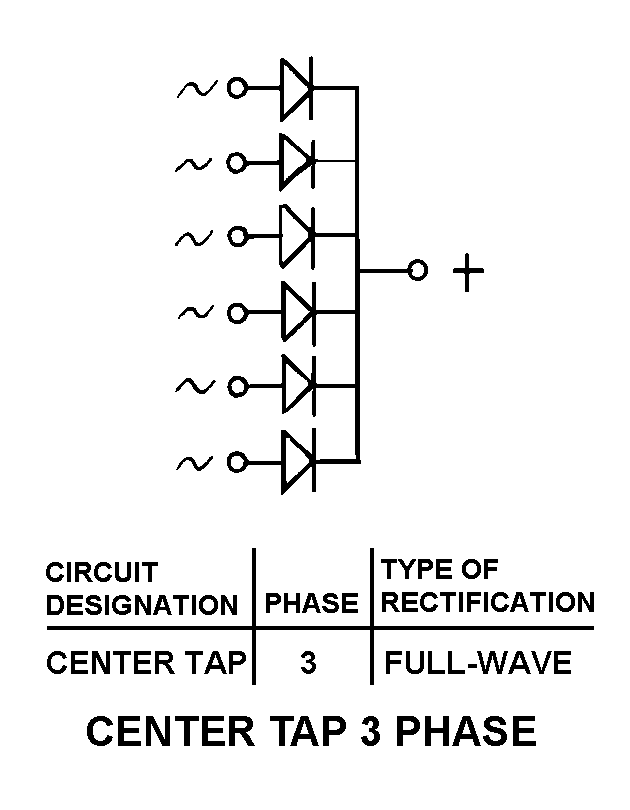

CENTER TAP 3 PHASE
CENTER TAP 3 PHASE
Cross Reference | NSN 6130-00-318-9127
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B13124 | 07860 | BOGUE ELECTRIC MANUFACTURING CO |
Technical Data | NSN 6130-00-318-9127
| Characteristic | Specifications |
|---|---|
| MATERIAL | SELENIUM |
| CIRCUIT CONNECTION STYLE DESIGNATOR | CENTER TAP 3 PHASE |
| OVERALL LENGTH | 7.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| TERMINAL QUANTITY | 7 |
| TERMINAL TYPE | SOLDER LUG |
| GROUNDED TERMINAL | NOT INCLUDED |
