NSN 6130-00-356-1787
Part Details | INTERRUPTER VIBRATOR
6130-00-356-1787 An electromechanical device which uses a coil operated switching mechanism to convert a direct current input into a pulsating direct current output of the same value. The direct current input is periodically interrupted at the resonant frequency of a coil driven vibrating armature (reed). The resultant pulsating direct current output produces an inherent alternating current component necessary for ultimate purposes of transformation. It does not include a means of amplification or rectification. For items designed to operate over a wide and comparatively high frequency range and whose drive coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC.
Alternate Parts: MX1198U, SCB104408, M1503S, 6130-00-356-1787, 00-356-1787, 6130003561787, 003561787
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | JAN 01, 1963 | 00-356-1787 | 00743 ( VIBRATOR, INTERRUPTER ) |
REFERENCE DRAWINGS & PICTURES

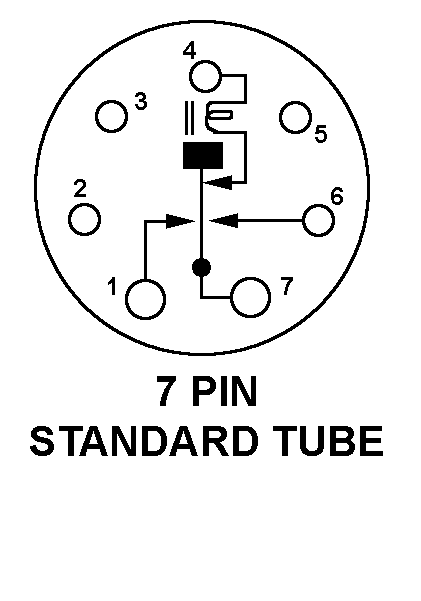

7 PIN STANDARD TUBE
Cross Reference | NSN 6130-00-356-1787
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MX1198U | 80058 | JOINT ELECTRONICS TYPE DESIGNATIONSYSTEM |
| SCB104408 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| M1503S | 37942 | YOSEMITE INVESTMENT INCDBA NORTH AMERICAN CAPACITOR CO |
Technical Data | NSN 6130-00-356-1787
| Characteristic | Specifications |
|---|---|
| INPUT VOLTAGE RATING | A24.0 DC VOLTS |
| INPUT CURRENT RATING | 2.0 AMPERES NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | UNEQUAL |
| OUTPUT FREQUENCY RATING | 106.9 HERTZ MINIMUM AND 123.5 HERTZ MAXIMUM |
| REED TYPE | CN ANY ACCEPTABLE |
| HERMETICALLY SEALED FEATURE | PROVIDED |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| OVERALL LENGTH | 2.938 INCHES NOMINAL |
| BASE CONNECTION WIRING STYLE | 7 PIN STANDARD TUBE |
