NSN 6160-01-519-0139
Part Details | BATTERY RETAINER
6160-01-519-0139 An item designed to position and/or restrain the movement of one or more batteries in their normal mounting position. See also TRAY, BATTERY and BATTERY BOX.
Alternate Parts: 9819566, 98-19566, 6160-01-519-0139, 01-519-0139, 6160015190139, 015190139
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | APR 01, 2004 | 01-519-0139 | 02890 ( RETAINER, BATTERY ) |
REFERENCE DRAWINGS & PICTURES

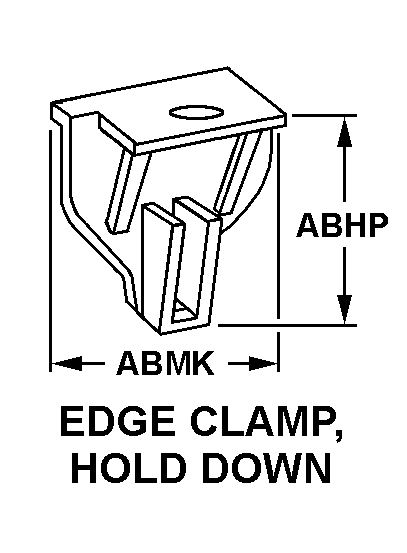

EDGE CLAMP, HOLD DOWN
Cross Reference | NSN 6160-01-519-0139
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 98-19566 | 30554 | DEPARTMENT OF DEFENSE PROJECTMANAGER-MOBILE ELECTRIC POWER |
Technical Data | NSN 6160-01-519-0139
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A240 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | EDGE CLAMP, HOLD DOWN |
| OVERALL LENGTH | 8.850 INCHES MINIMUM AND 8.910 INCHES MAXIMUM |
| OVERALL WIDTH | 5.970 INCHES MINIMUM AND 6.030 INCHES MAXIMUM |
