NSN 6160-01-556-6353
Part Details | BATTERY RETAINER
6160-01-556-6353 An item designed to position and/or restrain the movement of one or more batteries in their normal mounting position. See also TRAY, BATTERY and BATTERY BOX.
Alternate Parts: 3819852C2, 6160-01-556-6353, 01-556-6353, 6160015566353, 015566353
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | OCT 03, 2007 | 01-556-6353 | 02890 ( RETAINER, BATTERY ) |
REFERENCE DRAWINGS & PICTURES

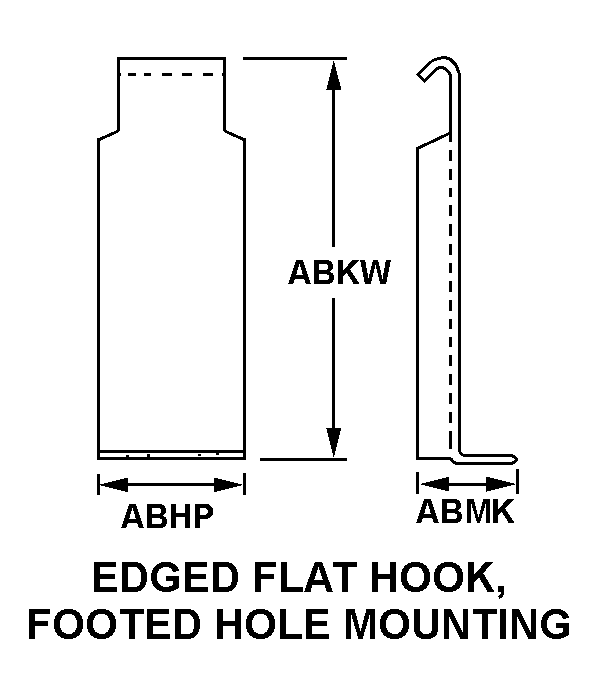

EDGED FLAT HOOK, FOOTED HOLE MOUNTING
Cross Reference | NSN 6160-01-556-6353
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3819852C2 | 338X5 | NAVISTAR DEFENSE LLC |
Technical Data | NSN 6160-01-556-6353
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT |
| STYLE DESIGNATOR | EDGED FLAT HOOK, FOOTED HOLE MOUNTING |
| OVERALL LENGTH | 82.0 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 320.0 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 26.0 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | SURFACE TREATMENT: CARC, EXTERIOR, LUSTERLESS TAN 686A |
| END ITEM IDENTIFICATION | MRAP - UNIQUE NSN - USED ON 2 MRAP VARIANTS; MRAP MAXXPRO DASH ISS W/OGPK AND W/CROWS |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SUPPORT, BATTERY HOLD DOWN |
