NSN 6210-00-223-8099
Part Details | ELECTRIC LIGHT GLOBE
6210-00-223-8099 An item of clear or diffusing material which incloses the light source and is specifically designed to be used with a FIXTURE, LIGHTING or other general illumination device, such as LIGHT, FLOOR and LIGHT, DESK.
Alternate Parts: 26570B, 26-570B, 6Z8138, 26570B, 26-570B, 6210-00-223-8099, 00-223-8099, 6210002238099, 002238099
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | JAN 01, 1963 | 00-223-8099 | 11119 ( GLOBE, ELECTRIC LIGHT ) |
REFERENCE DRAWINGS & PICTURES

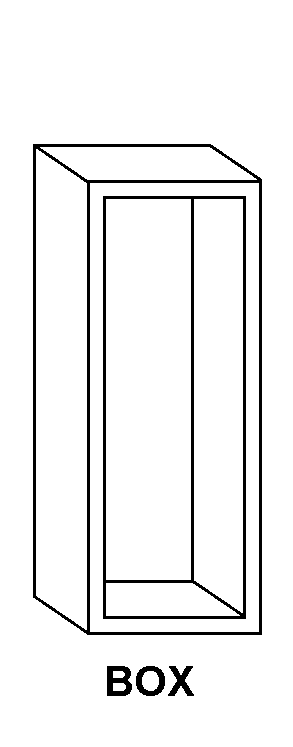

BOX
Cross Reference | NSN 6210-00-223-8099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26-570B | 05690 | BARKER & WILLIAMSON |
| 6Z8138 | 20800 | ORDNANCE PARTS AND ENGINEERING CO |
| 26-570B | 4W146 | SMART MACHINES, INC.DBA BARKER & WILLIAMSON |
Technical Data | NSN 6210-00-223-8099
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| COLOR | COLORLESS |
| OUTER SURFACE CONDITION | ANY ACCEPTABLE |
| INSIDE SURFACE CONDITION | ANY ACCEPTABLE |
| MATERIAL TRANSPARENCY | CLEAR |
| OVERALL LENGTH | 25.000 INCHES NOMINAL |
| OVERALL WIDTH | 3.125 INCHES NOMINAL |
| OVERALL HEIGHT | 1.188 INCHES NOMINAL |
| MOUNTING METHOD | HOLES |
| MOUNTING HOLE QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.200 INCHES NOMINAL |
| MOUNTING CONFIGURATION | 23-5/8 IN. C TO C |
| STYLE DESIGNATOR | BOX |
