NSN 6240-01-147-0378
Part Details | INCANDESCENT LAMP
6240-01-147-0378 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Alternate Parts: ELEELT, ELE/ELT, AA1744, A-A-1744, 6240-01-147-0378, 01-147-0378, 6240011470378, 011470378
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | FEB 09, 1983 | 01-147-0378 | 00727 ( LAMP, INCANDESCENT ) |
REFERENCE DRAWINGS & PICTURES

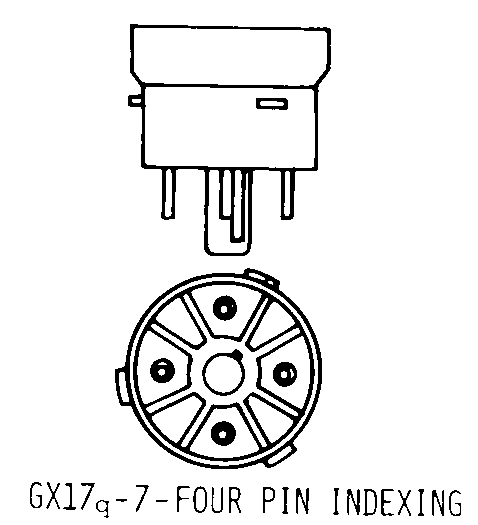

GX17Q-7-FOUR PIN INDEXING
Cross Reference | NSN 6240-01-147-0378
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ELE/ELT | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| A-A-1744 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 6240-01-147-0378
| Characteristic | Specifications |
|---|---|
| BASE STYLE | GX17Q-7-FOUR PIN INDEXING |
| BULB DESIGNATOR | MR-14 |
| OVERALL LENGTH | 1.703 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | CC-6 |
| WATTAGE RATING | 80.000 WATTS |
| VOLTAGE RATING | 30.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 2.667 AMPERES NOMINAL |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 20.000 |
| BURNING POSITION | HORIZONTAL |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| COLOR TEMP IN DEG KELVIN | 3450.0 |
| LIGHT CENTER LENGTH | 0.625 INCHES NOMINAL |
